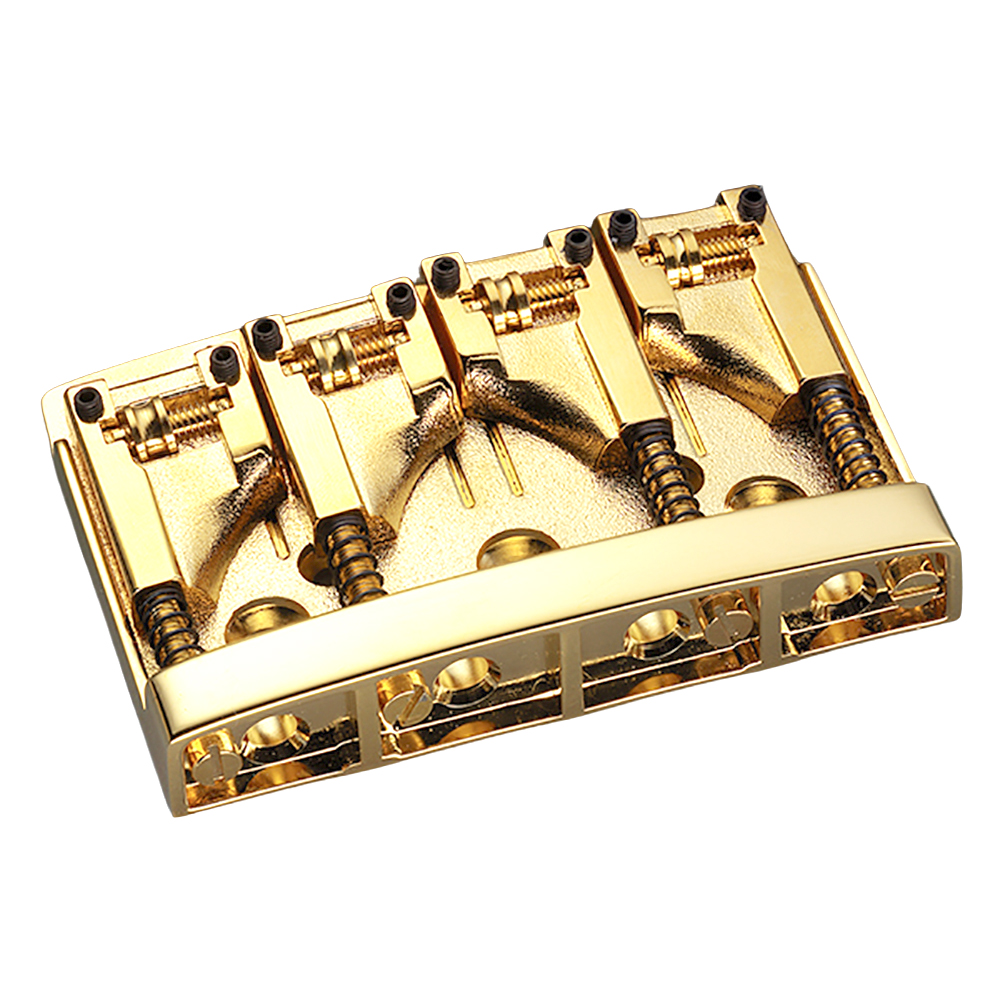

Schaller Electric Bass Guitar Bridge – 3D4 Gold

3D-4: patented 4-string bass bridge

• The roller bridge saddles reliably minimize string breakage while maintaining intonation and tuning stability.
• 3-dimensional adjustment of string height, intonation and string spacing (with roller bridge saddles).
• String rests with shafts and rollers made of solid and uncoated Pure Sound brass for excellent sound transmission.
• The individual string intonation is set by adjusting the string saddles.
• Heavy and precise construction for extra long sustain.
• Complete with 3mm spacer.
• The guitar or bass strings lie on low-friction roller saddles which prevent the strings from breaking.
• This means the string spacing can be adjusted flexibly.
• The roll widths are optimized for the standard mood E-A-D-G.

Advantages of Pure Sound brass

• Due to its softness, brass is an ideal saddle material and offers sufficient resistance to the strings.
• Uncoated brass saddles (plain or notched) can be easily customized by the guitar maker with a saddle file for smooth transitions.
• Form-fit support of the components in conjunction with improved string contact thus supports playability, intonation and sustain.

Technical specifications

• String spacing (E-A): 53.4 – 62.8 mm
• String spacing individual (neighboring strings): 18 – 21 mm
• String radius: adjustable from 7″ to 20″ inch
• Minimal G/d string height above body: 11.3 mm
• Height adjustment: 5 mm
• Maximum string gauge: 0.135
• Weight: 194 gram, 252 gram with accessories
• Please note: not suitabe for lefthanded models
• Height adjustment screw: grub screw with conical point with hexagon socket M3 x 8

Scope of supply

• 1 x 3D-4 bridge
• 3 x mounting screws M4.2 x 25 mm
• 1 x allen key 1.5 mm
• does not include optional 3 mm underlay (spacer)
