Sounds - you never thought possible

With this groundbreaking class A preamp your playing has never sounded better. Clear smooth highs, soulful mids and bodacious bass combined with an impressive dynamic range of 115 dB will lead your inspiration to new levels.

With a true bandwidth of 1Hz to 20 kHz at +/- 0 dB our state-of-the-art FlagShip circuitry provides unprecedented signal fidelity along with exceptional operational convenience.

And because of FlagShip‘s leading-edge rail-to-rail technology a single 9V alcaline battery will provide you with 1.000+ hours of play time.

Enjoy a self-sensing circuitry automatically switching in mono- or stereo-operation respectively by sensing which kind of chord you plugged in. In addition the FlagShip preamp offers an ultra-silent operation with a signal to noise ratio of -115 dB and a noise floor of just 20 dBµV. Schaller‘s own FlagShip gold contact 5-way lever or 3-way rotary switch lets you choose from a vast variety of piezo and magnetic switching options and –combinations never seen in any preamp before.

Please note: The FlagShip 5-way lever or optional 3-way switch are for controlling the preamp only. They do not replace the guitar`s 5-way lever or 3-way toggle pickup selector!

Sound, Innovation, Performance

• Advanced class A circuitry for sweet, transparent sound
• Compact, robust and perfectly shielded
• Attractive and protective casing with see-through window
• Original Schaller gold contact 5-way lever switch for outstanding signal flow and switching options
• Optional 3-way rotary switch available
• Stereo/mono self-sensing and –adjusting circuitry (no extra switch required)
• Rail-to-rail energy efficiency technology
• Reverse polarity and static discharge circuit protection
• Automatic power shut-off when cable is disconnected
• Plug-in contacts for easy solderfree installation
• 1000+ hours of playtime on a single 9V alcaline battery
• True 1Hz - 20kHz bandwidth at +/-0 dB
• Ultra quiet -115 dB signal-to-noise ratio
• Input impedance: 3 megaohms magnetic / 1 megaohm piezo
• Output impedance: 5 kiloohms
• All parts and components 100% made in Germany

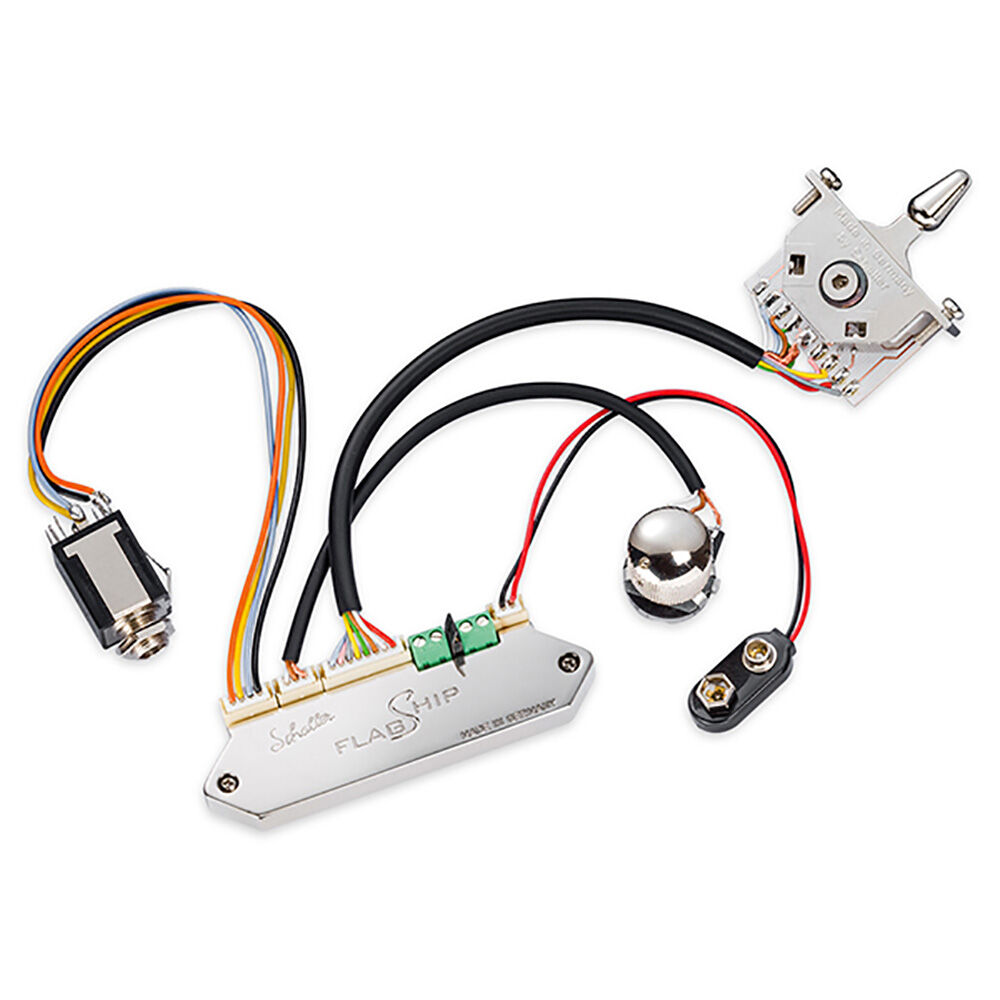

• Comes complete with preamp, 5-way lever or 3-way rotary switch, mono-/stereo-jack, Schaller control potentiometer (22K-Ohm), wiring and plugs
• Weight in grams: 49
• Size in mm: 89 x 24 x 7

(all specifications subject to change without notice)

• Volume piezo bridge and passive pickup with variable adjustment.
• Supplied with a stereo jack socket. This allows the piezo and pickup signal to be separated using a stereo splitter y-cable and then connected to two different amps or channels.
