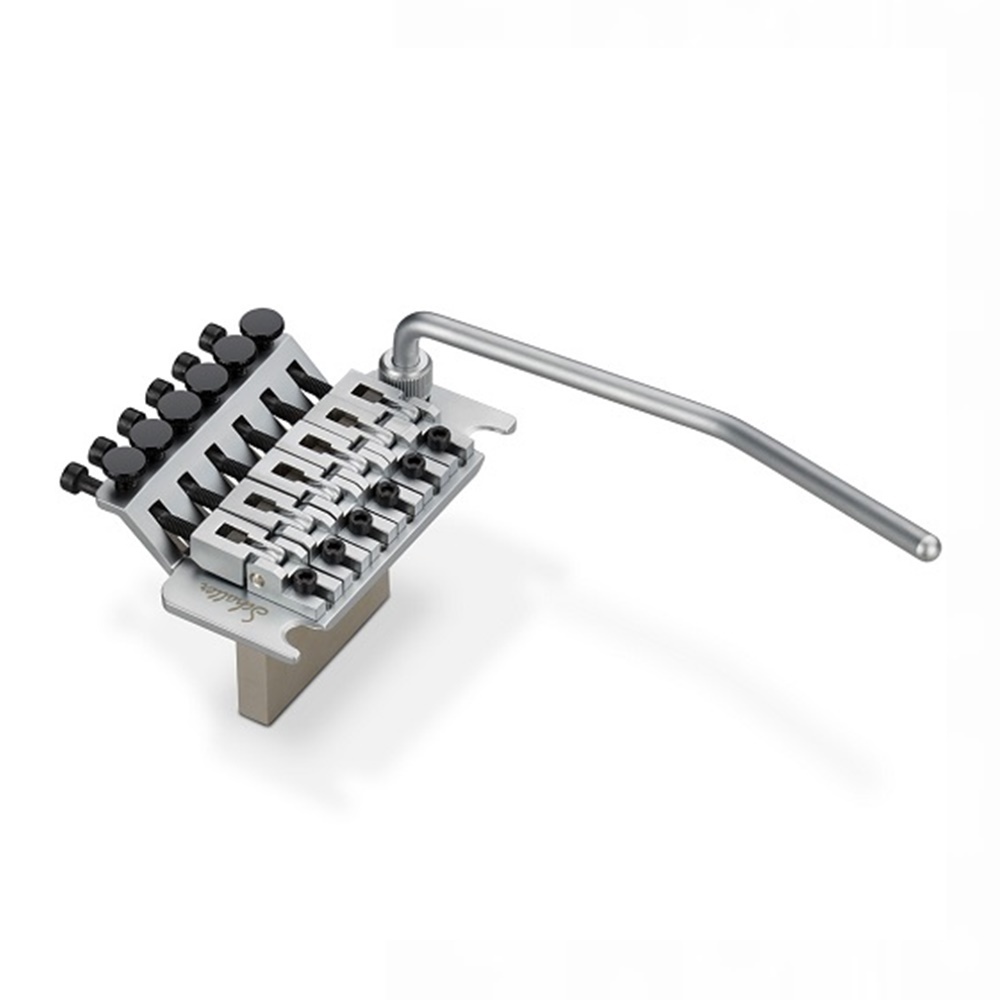

Our long-term experience with the production of Double locking tremolos has gone into the development of this identical tremolo. Exchangeable knife edges made of hardened steel and cast steel saddles, combined with a solid tremolo block provide perfect sound transmission and an extremely long sustain. Also available as lefthand version. The tremolo radius is 12", the radius of the nut element is 10" for the R2- or R3-Nut

• (standard: R2 Nut), string retainers, springs, height adjustment screws, Allen wrench and mounting accessories.
• 42mm block

Special studs with additional inserts are used to mount the tremolo onto the instrument. The inserts have a fine thread. We also supply studs with threads which enable the studs to be specify screwed into the wood body of the instrument directly, i.e. without inserts.

The dimensions of our Schaller Tremolo are exactly the same as the dimensions of both the Floyd Rose Tremolo and our LockMeister Tremolo. You can easily replace your Floyd Rose Tremolo or your LockMeister Tremolo with a Schaller Tremolo.

This also applies to all replacement parts!

String lock inserts

The back of the string lock inserts is numbered with 0,1 and 2.

• 0 is for the D and G strings,
• 1 is for the A and B strings and the number
• 2 is for both E strings.

  Features

• Model: Left-Hand
• Model: With Locking-Nut (No 2.)
• Tremolo-Block (mm): 42
• Surface: BlackChrome
• Measurements l x w x h (mm): 92x58x10
• Weight g/item: 440
• Bore mm: 10
