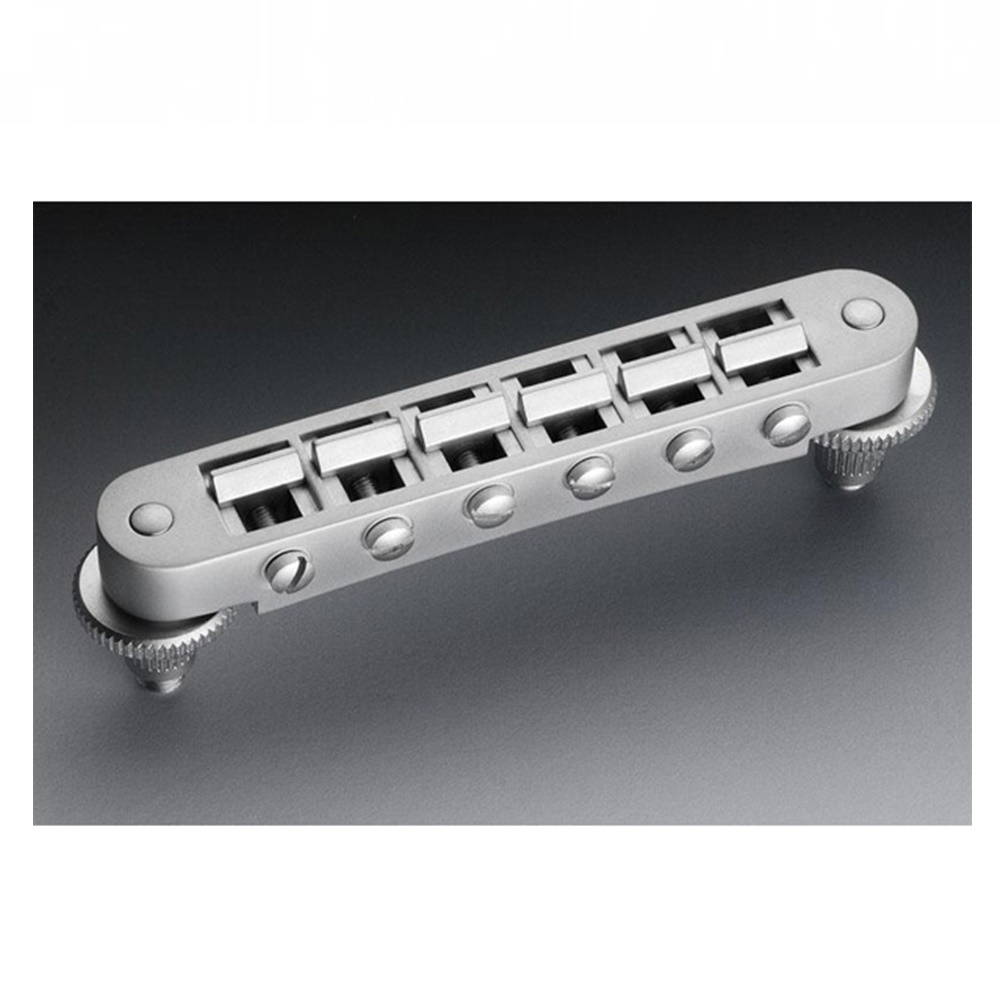

Schaller Guitar Bridge-Chrome GTM 45060 – 12090300 Satin Chrome

High-quality Tune-o-matic bridge for all Les Paul™* type guitars.

Compatible with post spacings from 74.0 - 74.5 mm

Features special retainer springs to prevent bridge rattle or string buzz

Saddles supplied without preconfigured string grooves allowing for individual string spacing

Slant angle to be determined by guitarmaker based on scale length and string gauge

No template required

Features

Model:  2-dimensional

Support:  Adjustable

Surface:  SatinChrome

Measurements: l x w x h (mm): 85x14x12,5

Weight g/item:  72

Bore mm:  7

Item number: 12090200

*Les Paul is a protected trademark owned by Gibson Musical Instruments Corporation
