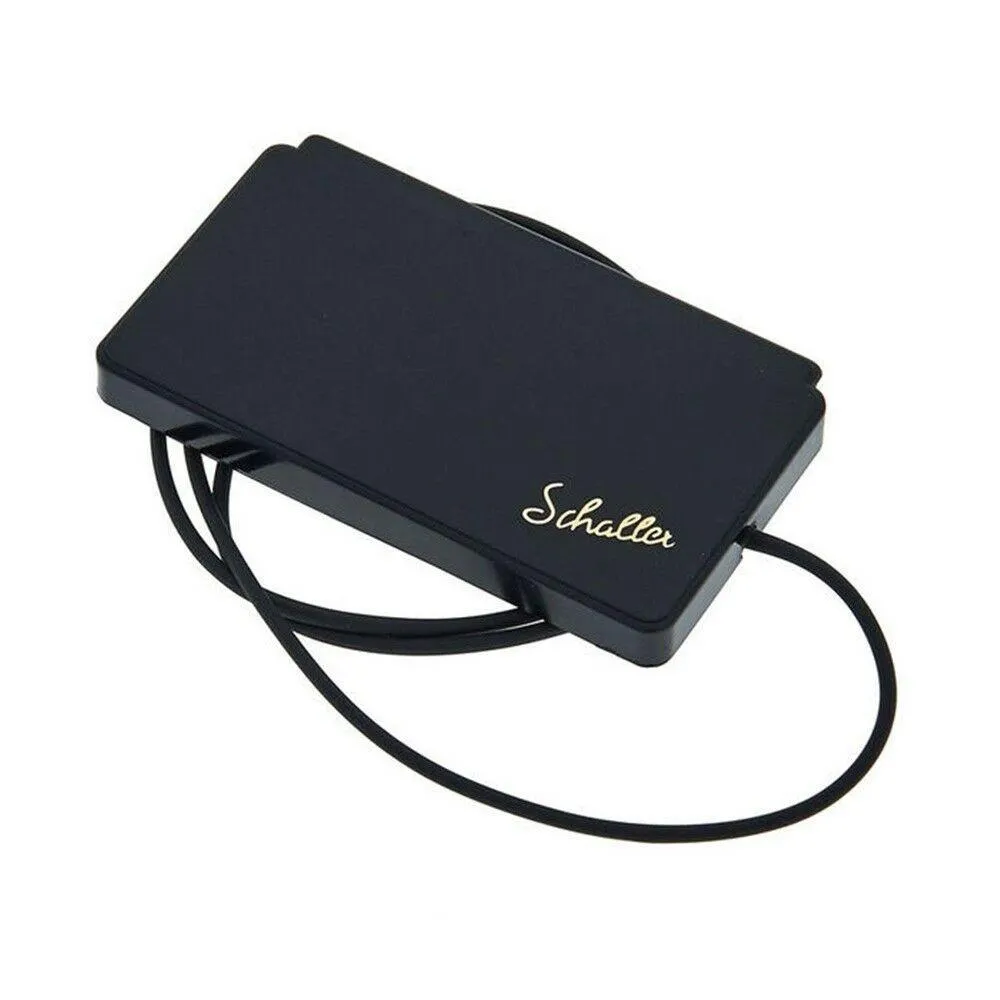

Schaller Jazz Pickup attachs to end of the fretboard of jazz or folk guitars

Special jazz guitar pickup which is mounted at the end of the fretboard. Extra flat design. Striking clarity and transparent sound. Comes complete witha shielded single-wire cable.

All Schaller pickups are manufactured to the highest quality requirements and the most demanding quality standards:

• In order to avoid deviations, the number of coil windings are controlled with utmost care.
• To avoid microphonic problems, all coils are vacuum-potted by means of a unique method.
• The colour selection includes black.
• Cable length: 40 cm
• Our PickupFinder with all information about musical applications, technical specifications, wiring diagrams and much more can be viewed directly on our homepage. ( Schaller )

Features

• Modell:
• Model: Adjustable
• Options: Neck Mounting
• DC-resistance/ kOhm: 10,8
• Surface: Grained
• Colours: Black

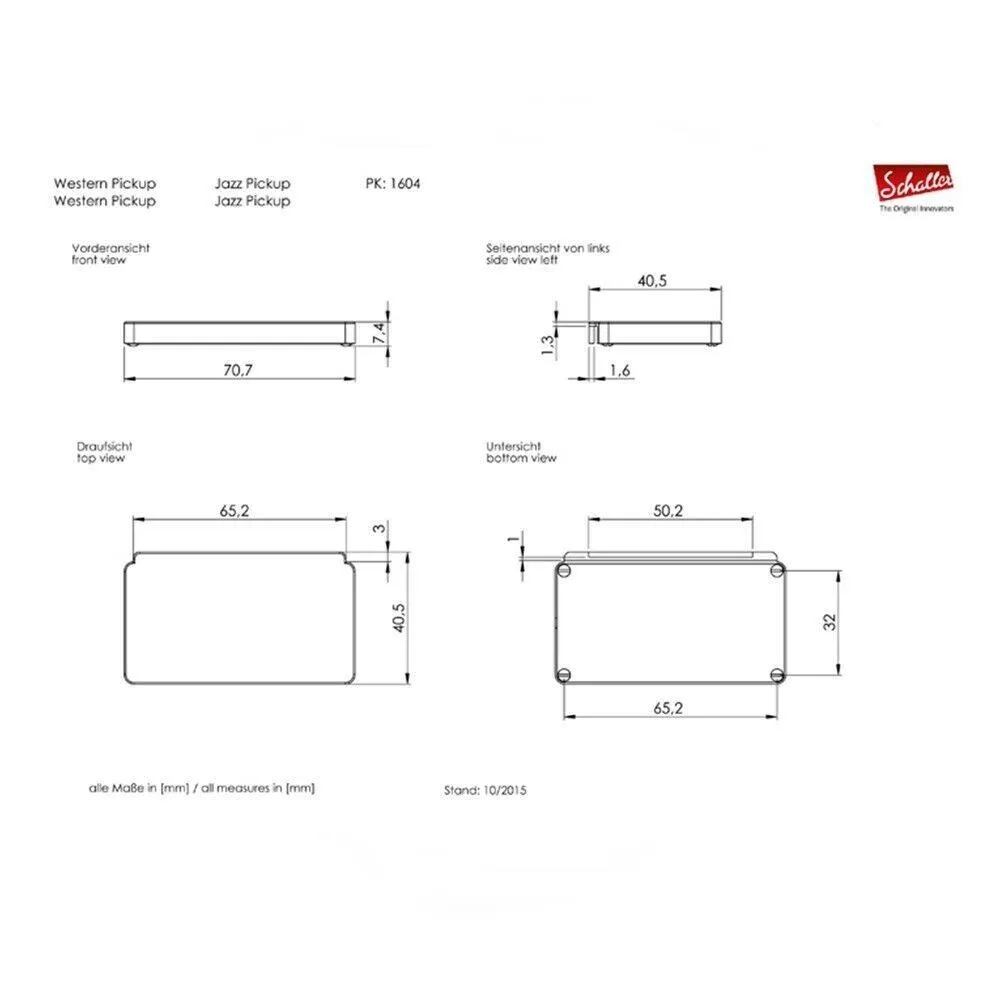

• Measurements l x w x h (mm): 71x38x7
• Weight g/item: 60

Item number16043000
