M6 Fender style pin mount replacement machine head for guitar (Original American Standard)

Our well-known Fender style guitar machine head in the proven quality that we have been producing for the guitar industry for decades.

• Original look and specs with cutting-edge Schaller technology.
• Exact replacement machine heads for Fender guitars with original dimensions in tried-and-tested Schaller quality.

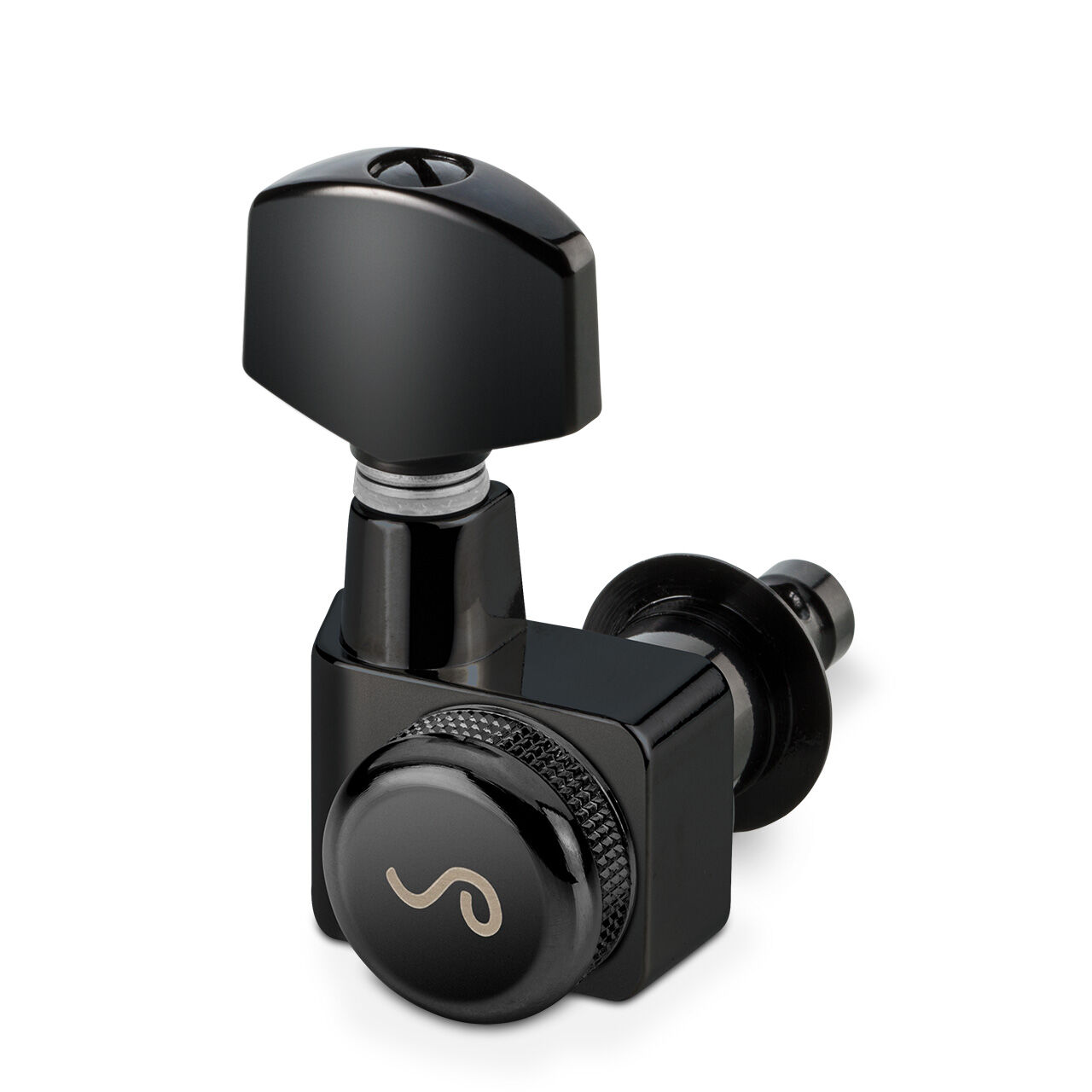

• Also available as a locking model with locking thumbwheel on the housing.

Mostly used on Fender® American Standard models such as Stratocaster®, Telecaster® and other models. (Fender®, Stratocaster® and Telecaster® are registered trademarks of Fender Musical Instruments Corporation.)

Technical specifications

• Gear ratio: 1:18
• Weight: 37 g per single tuner

Scope of supply

• 6 x threaded bushings
• 6 x step washers
• Only the locking model (staggered) is supplied with 3 x 19.5 mm and 3 x 21.0 mm posts (see illustration in the configurator).

Optional accessories can be found under replacement kits for machine heads.

Please note: two pins, Fender pins and locking models!

1. The new M6 pin (with two pins) has an identical housing dimension to the Schaller predecessor model (with one pin). For the exchange from old to new, please see the following picture and the technical drawing at the end of the article description. The correct pin spacing (center-to-center) is 10 mm.
2. Different dimensions to Fender pin tuners:

1. On some Fender guitars you will find machine heads that have a pin spacing of 10 mm. However, the distance between the pins and the center of the post varies here: Fender pin 11.7 mm vs. Schaller M6 pin 8 mm! As a rule, our M6 Fender-Style (optionally with locking wheel on the housing) machine heads are more suitable for Fender instruments, as the distance here corresponds to 11.7 mm (see technical drawing in the illustration above).
2. In the configurator, you can also select the locking model with thumbwheel on the housing.
