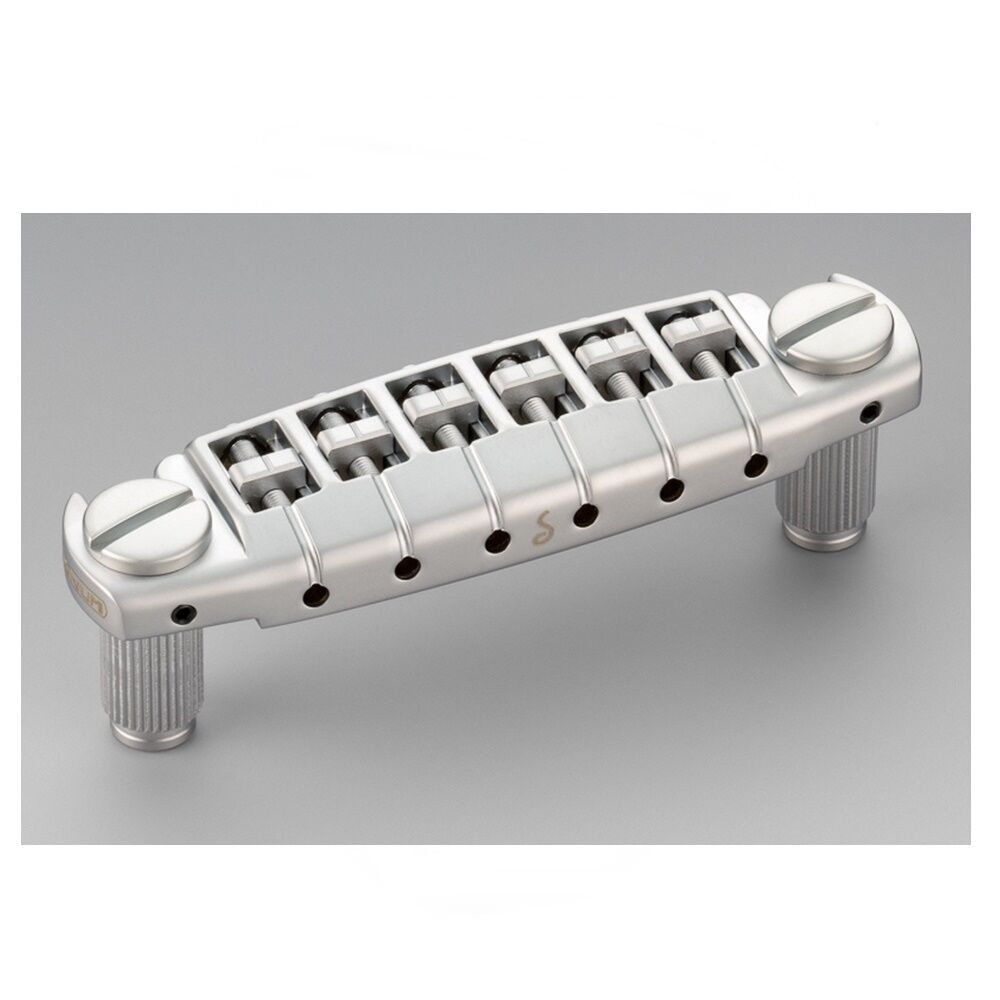

Schaller Signum Locking Guitar Bridge Chrome, Made in Germany

Features

• Designed to boost your guitar’s sound, playability and looks.
• Special design locking studs for tight connection and perfect sound coupling.
• Superb tonal definition by state-of-the-art string saddle shaping.
• Perfect natural resonance resulting in rich dynamics, sustain and overtones.
• Top surface elements designed for unparalleled playing comfort.
• Vast intonation space of 9 mm string saddle travel.
• Meticulously designed break and pressure angles.
• Optimized string-through-bridge routing for effortless restringing.
• Rectangular ball end retainer holes to prevent untwisting ball ends.
• Elegance and versatility for all guitar styles.
• Weight: 91g
• Weight incl. locking studs and bushings: 131g
• Press-in bushing and height adjustment screws M8
• Additionally height adjustment screws inch

Tech Specs

• String radius: 12“
• String spacing individual: 0.413“ (10.5 mm)
• String spread E to E: 2,067“ (52.5 mm)
• Post spacing: 3.22“ (81.8 mm)
• Weight: 0.198 lbs. (0.90 kg)
• Minimal G/D string height above body: 0.520“ (13.2 mm)
• Model: 2-dimensional
• Support: Locking studs
• Surface: Chrome
• Measurements l x w x h (mm): 100x23,9x13,1
• Weight g/item: 91
• Bore mm: 11
• Item number: 12350200

Includes

• 1 Signum Locking Wraparound Bridge
• 2 Signum Locking studs
• 2 Signum Locking stud bushings
• 1 Signum Locking key, ergonomically shaped for trouble-free locking
• 2 Pairs different lengths Allen screws (6 mm / 10 mm) for flawless visual appearance; with the 6 mm pair pre-installed
• 1 Allen key
• Pair HVS 5/16" 24UNF

Suitable for curved and flat guitar tops alike.

Angkor Music - Electronic upgrades.



Angkor Music - Guitar walkthrough.



SKU 44701
Barcode # 4036641017226
Brand Schaller
Shipping Weight 0.2800kg
Shipping Width 0.080m
Shipping Height 0.060m
Shipping Length 0.130m
Shipping Cubic 0.000624000m3
Unit Of Measure ea
