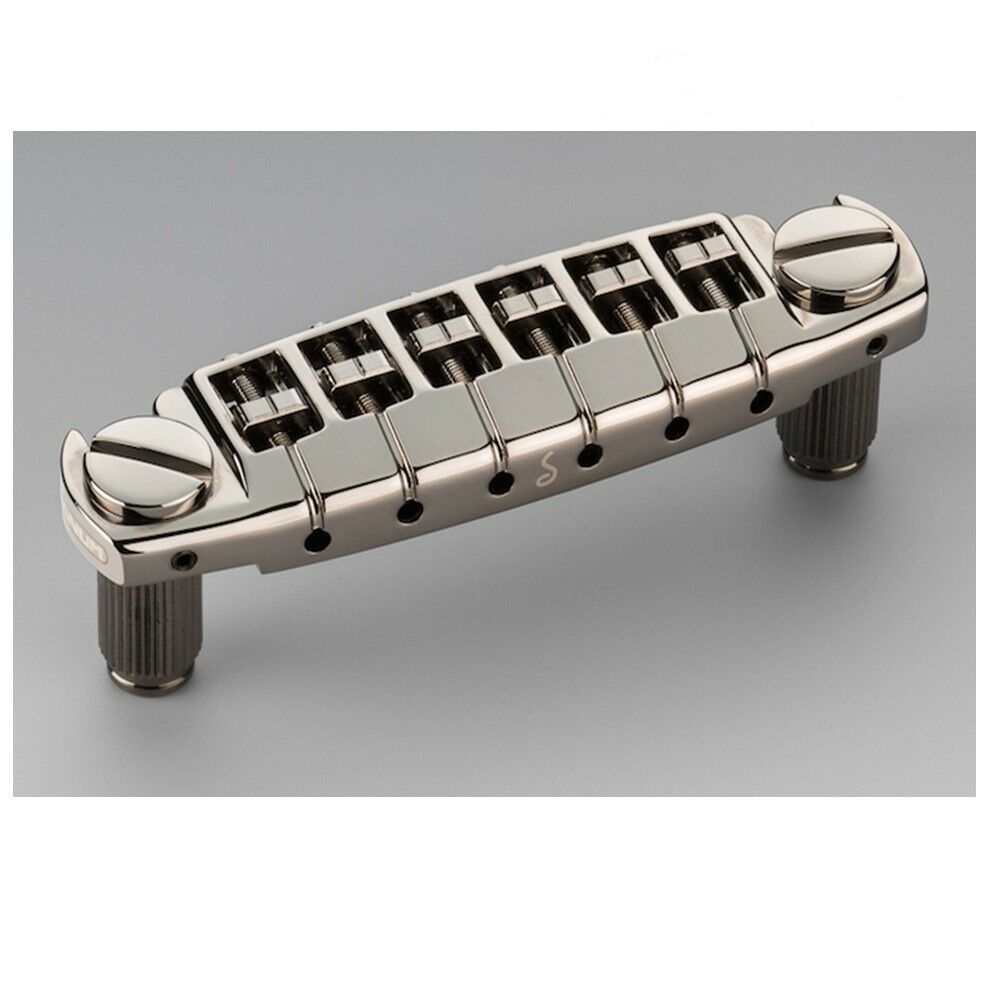

Schaller Signum Locking Guitar Bridge Nickel Made in Germany 12350100



Features



• Special design locking studs for tight connection and perfect sound coupling

• Superb tonal definition by state-of-the-art string saddle shaping

• Perfect natural resonance resulting in rich dynamics, sustain and overtones

• Top surface elements designed for unparalleled playing comfort

• Vast intonation space of 9 mm string saddle travel

• Meticulously designed break and pressure angles

• Optimized string-through-bridge routing for effortless restringing

• Rectangular ball end retainer holes to prevent untwisting ball ends

• Elegance and versatility for all guitar styles

• Weight: 91g

• Weight incl. locking studs and bushings: 131g

• Press-in bushing and height adjustment screws M8

• Additionally height adjustment screws inch



Includes



• 1 Signum Locking Wraparound Bridge

• 2 Signum Locking studs

• 2 Signum Locking stud bushings

• 1 Signum Locking key, ergonomically shaped for trouble-free locking

• 2 pairs different lengths Allen screws (6 mm / 10 mm) for flawless visual appearance; with the 6 mm pair pre-installed

• 1 Allen key

• Pair HVS 5/16" 24UNF



Tech Specs



• Model: 2-dimensional

• Item number: 12350100

• Support: Locking studs

• Surface: Nickel

• Measurements l x w x h (mm): 100x23,9x13,1

• Weight g/item: 91

• Bore mm: 11

• String radius: 12“

• String spacing individual: 0.413“ (10.5 mm)

• String spread E to E: 2,067“ (52.5 mm)

• Post spacing: 3.22“ (81.8 mm)

• Weight: 0.198 lbs. (0.90 kg)

• Minimal G/D string height above body: 0.520“ (13.2 mm)



Suitable for curved and flat guitar tops alike.



We deliver inserts and studs metric and additional studs imperial/inch in case you have already inserts imperial/metric in your guitar.
