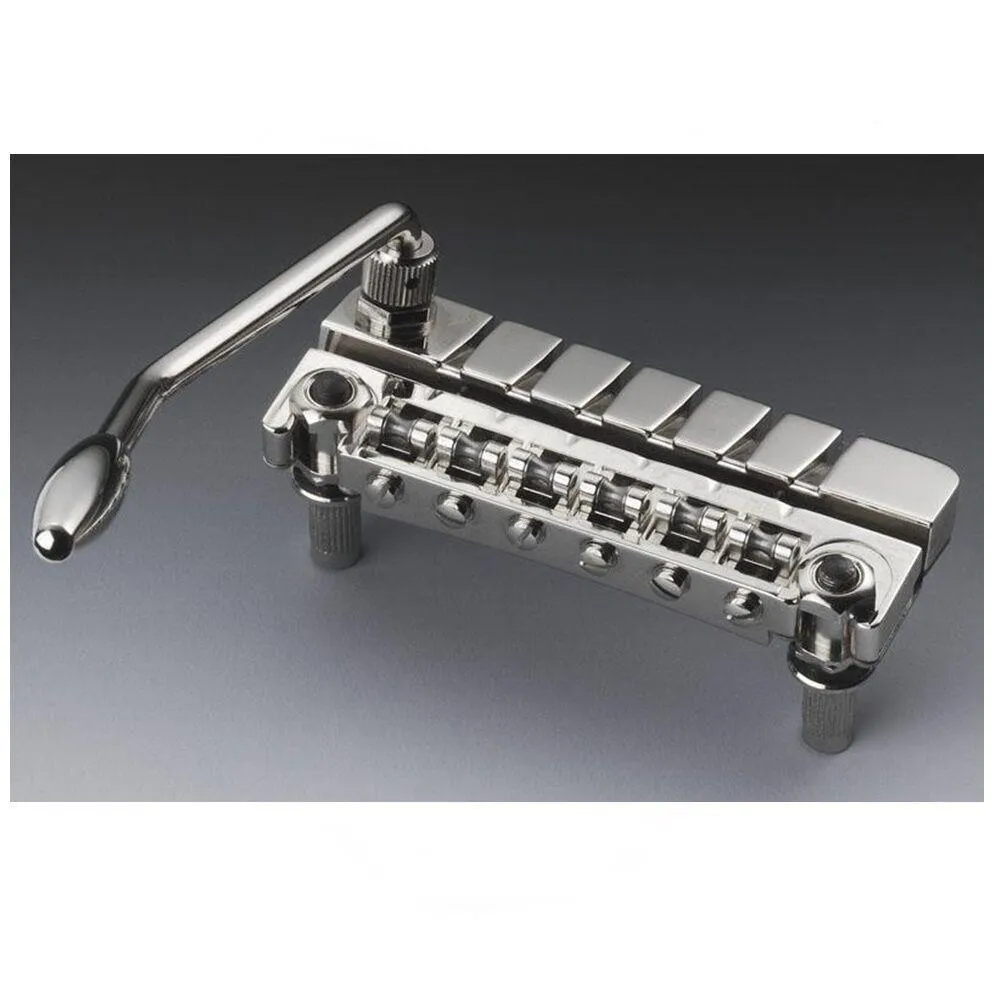

Schaller Tremolo Surface Mounted Les Paul Bridge Chrome – 13070200

Schaller Tremolo Surface Mounted Les Paul Bridge Chrome -13070200

Special design tremolo for LesPaul™* type guitars featuring Tune-o-matic or wraparound bridges.

• Compatible with post spacings from 74.0 - 74.5 mm andbeyond – see adapter sleeves supplied
• Plug & play, fits Tune-o-matic / stop-tailpiececombinations
• No extra routing or body work required
• Comes complete with mounting accessories, springs and metalsheet for grounding
• Best suited for light tremolo action and string gauges 9 -42 or 10 - 46

Scope of delivery:
1.) pair of M5 high-adjustment screws with press in bushings
2.) pair of M8 high-adjustment screws
3.) 2 pairs of adapter sleeves for post spacings with bolt 5,7mm and6,5mm

All specs and bushings match our string retainers and bridgesand are true to their respective historic standards. Therefor switchingback and forth between the LP tremolo and a Tune-o-matic combinationpresents no problem.

*Les Paul is a protected trademark owned by Gibson Musical InstrumentsCorporation

Features

• Model: Tremolo without Block
• Model:
• Tremolo-Block (mm): Without
• Surface: Chrome
• Measurements l x w x h (mm): 90x33x10
• Weight g/item: 210
• Bore mm: 7

Item number13070200
