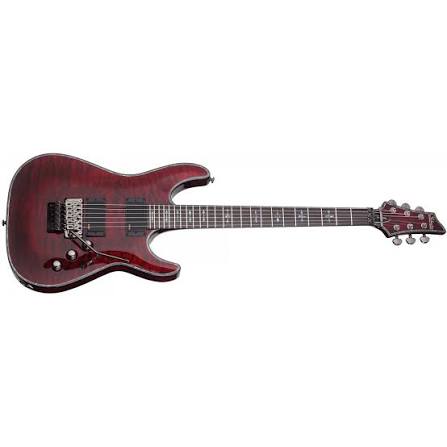

Schecter Hellraiser C-1 FR Electric Guitar — EMG 81TW & EMG 89R Coil-Split — Black Cherry

The Schecter Hellraiser C-1 FR is the full-specification Hellraiser build without the Sustainiac system — which means the neck position is freed up for a full active pickup rather than a sustainer driver, and the result is a different kind of tonal range. The bridge carries an EMG 81TW (the coil-splitting twin-coil version of the EMG 81) and the neck carries an EMG 89R — both active, both coil-splittable via the push-pull volume pots. In full humbucker mode the guitar delivers the tight, high-output active character the Hellraiser series is known for. With both coils split via the push-pull controls, it opens up to a brighter, more open single-coil voice. The Floyd Rose 1000 handles the tremolo, the Mahogany body with arched Quilted Maple top and abalone Gothic Cross inlays establish the visual identity, and Schecter locking tuners at the headstock contribute to tuning stability without a locking nut.

EMG 81TW — Active Humbucker with Coil Split

The EMG 81TW is a version of the EMG 81 with a Twin Coil design that enables coil splitting via an external switch — in this case, the push-pull bridge volume pot. In full humbucker mode, the 81TW delivers the same active humbucker character as the standard EMG 81: ceramic magnets, high output, low noise, tight low end, and the clear, aggressive articulation that the 81 has brought to high-gain music for decades. This is an active pickup — the coil signal passes through an onboard preamp before reaching the output jack, producing a low-impedance, high-output signal that drives a preamp cleanly and remains clear through high amounts of amplifier gain.

When the bridge volume push-pull is engaged, the 81TW splits to a single-coil configuration. The active preamp remains in circuit, so the split tone is still active in character — higher output than a vintage passive single coil, and much lower noise. The tonal shift is from the EMG 81's tight, scooped, full-bandwidth humbucker response to a brighter, more open single-coil-like tone with more pick articulation and less low-mid body. The two voices from the same position are genuinely different from each other.

EMG 89R — Reverse-Wound Active Humbucker with Coil Split

The EMG 89R is EMG's neck-position active humbucker with built-in coil-split capability. In humbucker mode it is closely voiced to the EMG 85 — warmer and slightly more open in the mid-range than the 81, making it appropriate for a neck position that produces thick, sustaining lead tones and clean or lightly driven chord work. It is an active pickup sharing the same battery as the 81TW.

The "R" in 89R stands for reverse-wound, reverse-polarity. This is the same principle used in middle pickups on a standard Strat: when the 89R's coil-split single-coil voice is used together with the 81TW's split single-coil voice (in the middle pickup selector position with both push-pulls engaged), the two coils hum-cancel each other. The result is a hum-free, bright, open blend of the two split single-coil voices — an unusual capability for an active-pickup guitar, and one that requires no extra switching beyond pulling both volume knobs up and moving the pickup selector to the middle position.

Active Electronics — One Battery, Two Pickups

Unlike the Hellraiser C-1 FR S with its Sustainiac system (which requires two 9V batteries), the Hellraiser C-1 FR uses a single 9V battery to power both the EMG 81TW and EMG 89R. This is standard EMG wiring — both pickups share the same power supply through the circuit, with the battery connected to the output jack sleeve so current flows only when a cable is plugged in. Unplug the guitar when it is not in use to extend battery life. Battery life with EMG active systems is typically 1,000 hours or more under normal use.

The battery is accessed through a single clip-in compartment on the rear of the body, accessible without tools. Carry a spare for live performance — a flat battery produces a noticeably degraded, weak signal rather than silent failure, which can be confusing to diagnose on stage if the battery hasn't been checked recently.

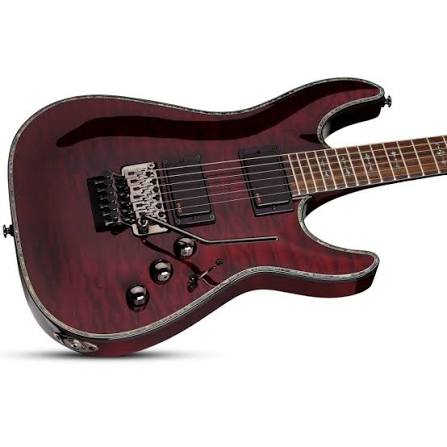

Mahogany Body, Quilted Maple Top — Hellraiser Identity

The Hellraiser C-1 FR uses the same body construction as the rest of the Hellraiser series: a Mahogany body with a Quilted Maple cap shaped into an arched top. Mahogany provides the warm, full-bodied low-end and midrange sustain that has made it the benchmark body wood for thick, high-gain guitar tones. The arched Quilted Maple top adds a visual dimension — quilted maple shows a three-dimensional rippling or bubbling figure in the grain that shifts with the viewing angle. In Black Cherry, the figure reads as a deep translucent red with dark patterning, and the arched contour catches light differently across its surface.

The binding is abalone shell with a BLK/WHT/BLK multi-ply layer beneath it — the same treatment used on the body edges frames the top precisely and complements the abalone Gothic Cross inlays on the fretboard. The hardware is Black Chrome throughout, consistent with the dark, high-contrast aesthetic of the Hellraiser line.

3-Piece Mahogany Neck, Rosewood Fretboard, Gothic Cross Inlays

The neck is a 3-piece Mahogany construction with a Thin C profile — 20mm at the first fret and 22mm at the twelfth fret. Multi-piece necks laminate alternating grain directions between sections, improving dimensional stability compared to single-piece necks. The Thin C profile is a shallow, rounded contour suited to fast playing and extended sessions, and the Mahogany material complements the body tonally with warmth and sustain through the neck joint.

The rosewood fretboard has a 14-inch (355mm) radius — flat by contemporary standards — with 24 X-Jumbo frets. A flat radius minimises fretting out on wide bends, and X-Jumbo wire reduces the finger pressure needed to fret cleanly. The fretboard inlays are abalone Gothic Crosses, the identifying visual mark of the Hellraiser series, positioned at the standard fret locations and matching the abalone binding on the body.

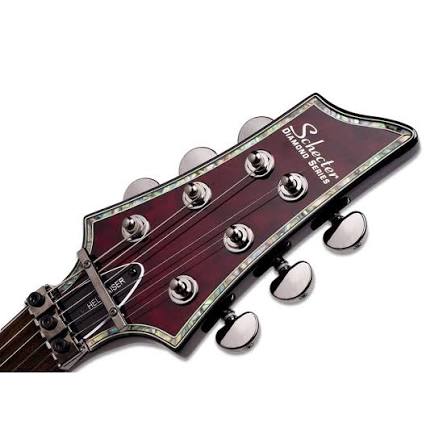

The nut is a Graph Tech XL Black Tusq — a synthetic material made from PTFE-impregnated graphite composite. Black Tusq is specified for its low friction: strings pass over it cleanly during tremolo use and return to pitch more reliably than with a standard bone or plastic nut. Combined with the Schecter locking tuners at the headstock, this provides good tuning stability without the string-change complexity of a locking nut. Schecter locking tuners clamp the string at the tuning post, eliminating string slippage at the peg and removing the need for multiple string winds that can stretch and drift.

Floyd Rose 1000 Series — Tremolo Without a Locking Nut

The Floyd Rose 1000 Series bridge locks the string at the saddle level with individual saddle lock screws, providing a high-quality pivot point for tremolo use. On this guitar, however, the nut is a Graph Tech Black Tusq rather than a Floyd Rose locking nut. This means the Hellraiser C-1 FR is not a double-locking tremolo setup — the string is locked at the bridge saddle only, not at the nut end.

In practice, this makes a meaningful difference. A double-locking setup (locking nut + locking saddles) maintains tuning through heavy tremolo use because there is literally nowhere for the string to slip. Without the locking nut, the string can move at the nut under repeated heavy tremolo use — the Graph Tech Tusq material and Schecter locking tuners reduce this significantly, but they do not eliminate it entirely the way a locking nut does. For moderate tremolo use — vibrato, mild pitch bends with the arm — the combination of locking tuners and low-friction nut performs well. For extreme dive bombs or sustained heavy tremolo technique, some players will find more tuning drift than with a fully double-locking system.

The fine tuners on the Floyd Rose bridge body are used normally for tuning adjustment, as there is no locking nut to remove before reaching the machine heads. String changes are straightforward — loosen the saddle lock screw, remove and replace the string, and tune up via the tuning machines and fine tuners as normal. This is considerably simpler than a full double-locking setup.

Who Is the Hellraiser C-1 FR For?

The Hellraiser C-1 FR is for players who want the full Hellraiser aesthetic and build quality — arched Quilted Maple top, abalone binding, Gothic Crosses, Black Chrome hardware — with an active pickup system that offers genuine tonal range through coil splitting, and a Floyd Rose tremolo for expressive pitch manipulation without the maintenance overhead of a double-locking system.

Compared to the Hellraiser C-1 FR S (Sustainiac model, SKU 1826), this guitar trades the Sustainiac's infinite sustain and harmonic feedback capability for a second full active pickup in the neck position and the coil-split versatility that brings. Players who want high-gain humbucker tones and the ability to open up to a cleaner, brighter single-coil voice without changing guitars will find this a useful combination. Players who specifically want the Sustainiac system should look at the 1826.

Specifications

Frequently Asked Questions

What exactly does pulling the volume knobs do?

Each volume knob controls both the volume of its respective pickup and, when pulled upward, activates the coil split for that pickup. Pull the bridge volume knob and the EMG 81TW splits from a full active humbucker to a single-coil active voice — brighter, with more pick articulation and less low-mid body. Pull the neck volume knob and the EMG 89R does the same, moving from its humbucker voice to a single-coil character. You can split one pickup independently of the other, or both simultaneously. In the middle pickup selector position with both pickups split, the reverse-wound EMG 89R hum-cancels with the bridge coil for a clean, noise-free single-coil blend.

Is this guitar double-locking?

No. The Floyd Rose 1000 Series bridge locks the strings at the saddle level, but the nut on this guitar is a Graph Tech Black Tusq — a high-quality synthetic nut material, not a locking nut. This means only the bridge end of the string is locked; the nut end moves freely. For moderate tremolo use the combination of the locking saddles, low-friction Tusq nut and Schecter locking tuners provides good tuning stability. For heavy, extended tremolo use — repeated full dive bombs, sustained arm-bar pressure — you may experience more tuning drift than you would with a double-locking system. String changes are significantly simpler than with a locking nut, as you just tune up via the machine heads and fine tuners as normal.

How is this different from the Hellraiser C-1 FR S (SKU 1826)?

The SCH1794 (Hellraiser C-1 FR) and the 1826 (Hellraiser C-1 FR S) share the same Hellraiser body, neck, binding and aesthetic but have entirely different electronics. The 1826 has an EMG 81 bridge pickup and a Sustainiac sustainer in the neck position — the Sustainiac generates infinite sustain and harmonic feedback and requires its own 9V battery, bringing the total to two batteries. The SCH1794 has an EMG 81TW bridge and an EMG 89R neck — both conventional active pickups, both coil-splittable via push-pull, sharing one 9V battery. The SCH1794 also uses a Graph Tech Tusq nut (non-locking) where the 1826 uses a Floyd Rose locking nut (double-locking). Choose the 1826 if infinite sustain and harmonic feedback are important to you; choose the SCH1794 if you want coil-split tonal range and simpler string changes.

How long does the 9V battery last?

Both the EMG 81TW and EMG 89R share a single 9V battery via standard EMG parallel wiring. Battery life with EMG active systems is typically 1,000 hours or more under normal playing conditions — active EMG pickups are very efficient. The battery drains only when a cable is plugged into the output jack (the sleeve contact completes the circuit), so unplugging the guitar when you stop playing is the best way to extend battery life. A degraded EMG battery produces a noticeably weak, thin signal rather than complete silence — if the guitar suddenly sounds wrong, check the battery first.

Does the coil split sound like a passive single coil?

The split tones from the EMG 81TW and 89R are brighter and more open than the full humbucker voices, and they hum-cancel when used together in the middle position — but they do not sound like traditional passive single coils. They are still active: the onboard preamp remains in circuit in both modes, so the output is higher and the noise floor is lower than a Stratocaster-style passive single coil. The character is distinctly "active single coil" — clear, defined, with fast transient response — rather than the vintage warmth of a passive Alnico single coil. For players who want the tonal shift of a split for cleaner, brighter passages rather than a true vintage-voiced single coil, the result is very useful.
