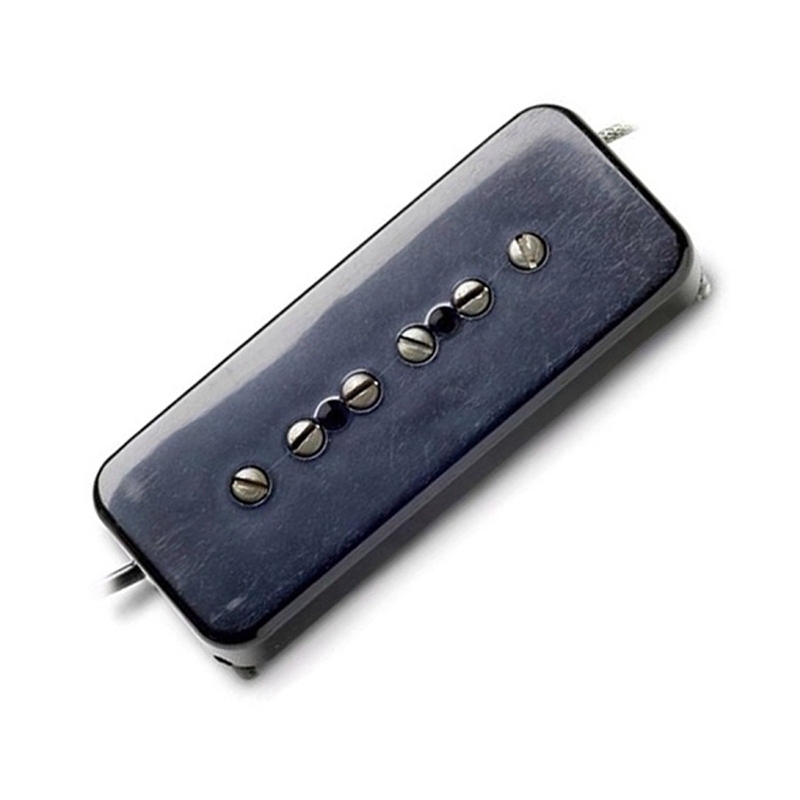

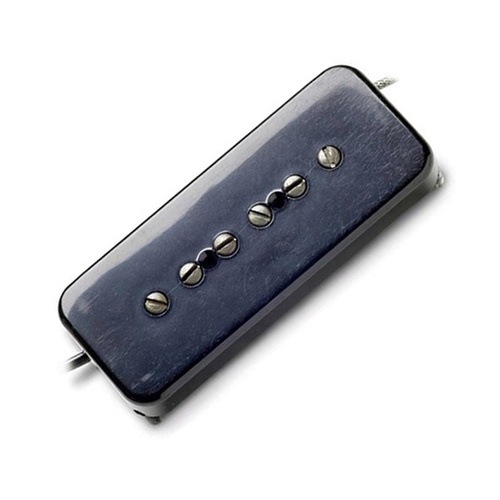

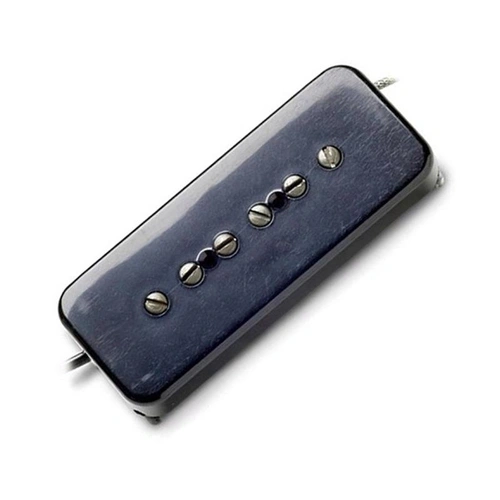

Imagine the pickups out of an old '52 gold top or a '59 ES-330. By removing the cover you'll find the same hand-fabricated bobbins, wire and "flatback" tape that was used in the originals. Two specially calibrated Dun-Aged™ Alnico II magnets are attached to a precision metal spacer which transfers the magnetic field to the strings via six fillister head pole pieces. The "soapbar" version is available with black or cream covers. All versions have an authoritative, vintage tone.

• Top pickup length: 3.158

• Top pickup width: 1.205

• Bottom plate length: 3.30

• Bottom plate width: 1.295

• Total pickup height: 0.640

• Total magnet height: 0.125

• Winding direction: top coming

• Pickup cover length: 3.365

• Pickup cover width: 1.365

• Pickup cover height: 0.360

• Magnet polarity: north

• Center to center: n/a

• Calibrated: yes

• Height adjustment: mounted to body

• Magnet pattern: 2 bar magnets

• DC Ohms:  7.9K

• Q: 2.84

• Inductance:  6.85 henries
