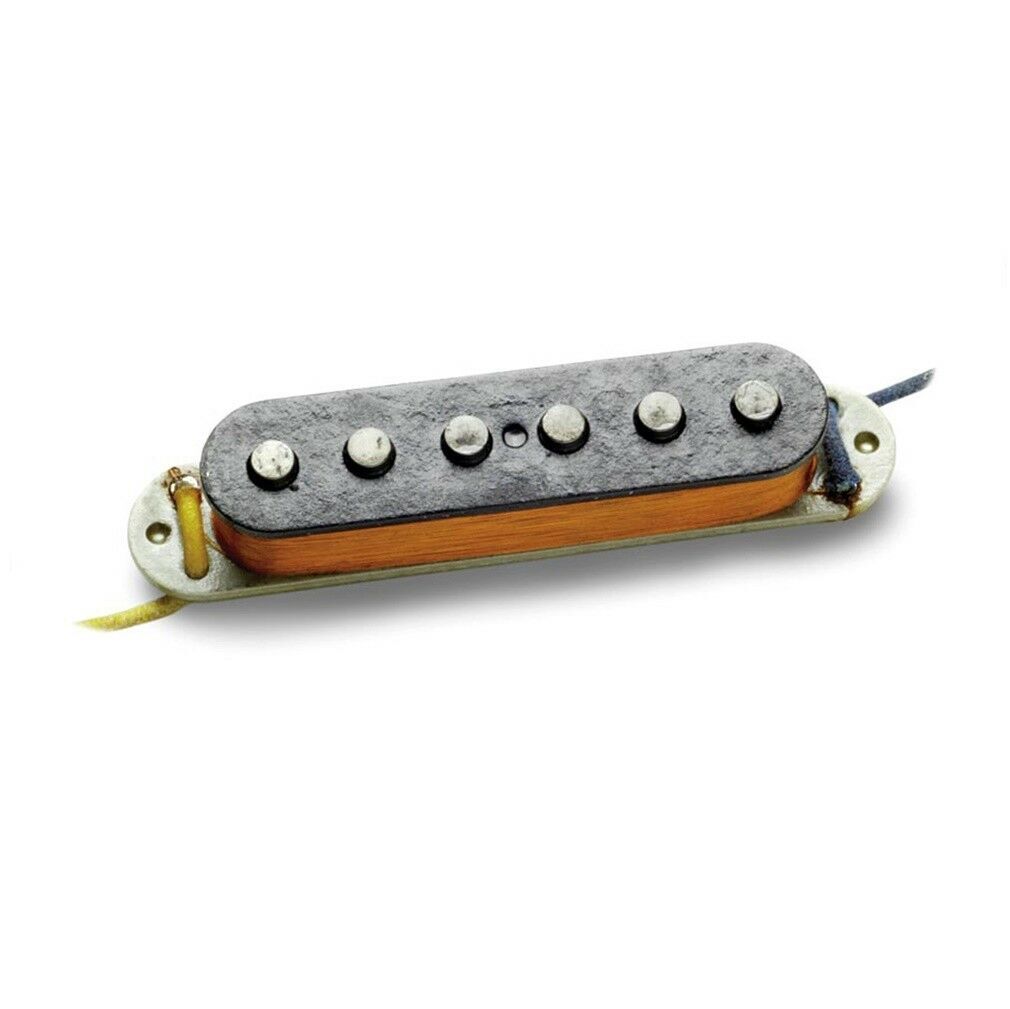

Seymour Duncan Antiquity II 2 ’60s Jet for Jaguar Bridge Guitar Pickup

The mid-'60s Jaguar® was an important part of the surf sound for dozens of Southern California bands and was heard on many TV and movie soundtracks. This replica of the '60s pickup is perfect for restoring your instrument or replacing damaged or non-existing pickups. The pickup is a direct replacement that fits existing Jaguar "claw" pickup covers. The pickup will restore the traditional sound of your instrument.

• top pickup length: 2.630

• top pickup width:  .612

• bottom plate length: 3.285

• bottom pickup width: .612

• total pickup height: .605

• total magnet height:  .688

• winding direction:  top going (neck), top coming (bridge)

• magnet polarity: north (neck), south (bridge)

• calibrated: yes

• height adjustment:  into body

• magnet pattern: raised top and bottom

• DC Ohms:  6.8K

• Inductance:  3 henries

• Q:  3.1

Angkor Music - Electronic upgrades.
