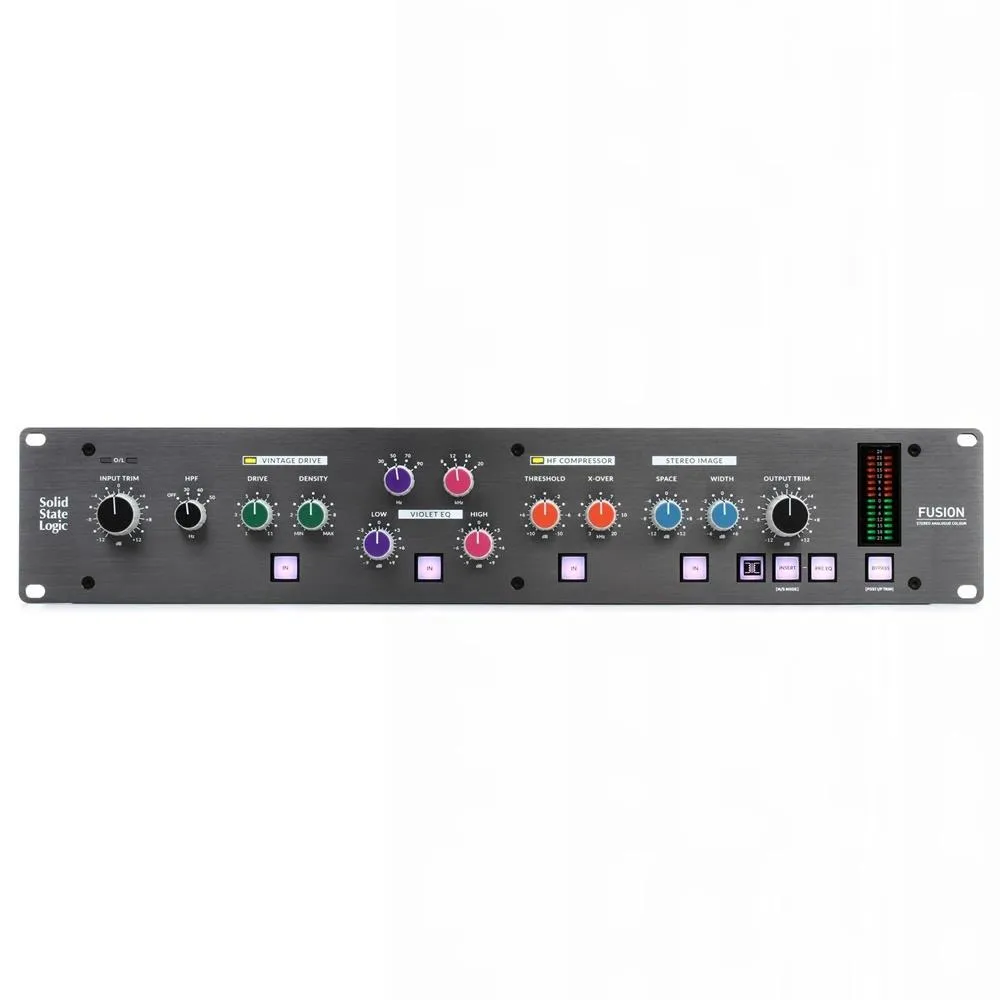

Fusion Analog Master Processor with Vintage Drive, Violet EQ



Features:



• A master processor with 5 new SSL analog color circuits

• Vintage Drive — a unique nonlinear saturation circuit designed to bring that cherished gradual analog overload sound you get from pushing vintage equipment into the sweet spot

• Violet EQ — a 2-band, minimum-phase-shift shelving EQ offering instant low-end weight and gorgeous high-end air; 4 fixed frequency points for each band with ±9dB boost/cut

• HF Compressor — high-frequency compressor optimized for smooth taming of brittle high end

• Stereo Image — a built-in M-S circuit that allows sumptuous sculpting of the side signal for wider mixes with increased depth

• SSL Transformer — a custom SSL design that introduces subtle low-frequency harmonics for added weight, with a touch of added transformer sparkle in the highs

• Access the hidden Listen Mic Compressor processor to add impact and energy to drums, vocals, and guitars

• Onboard Insert Point with Stereo and M-S operation

• 3rd-order HPF (highpass filter) to eliminate unwanted low end

• SuperAnalogue ±12dB center-indented Input and Output Trim controls for optimized gain staging

• Individual Bypass switches for each circuit to compare sounds with each circuit engaged/disengaged

• Master Bypass switch with two modes of operation: complete bypass (Red) and bypass that includes the Input Trim control (White)

• Master LED meter with 3-second peak hold segments switches from output to input metering upon pressing the Bypass switch

• Input clipping O/L LEDs that are triggered at +27dBu

• Balanced XLR I/O throughout for professional studio integration

• Enhanced dot-dash screening around controls for clarity and easy recall

• Adjustable front-panel meter and switch brightness to match the vibe of your studio environment



Tech Specs:



• Processor Type:SSL Analog Coloration

• Number of Channels:Stereo

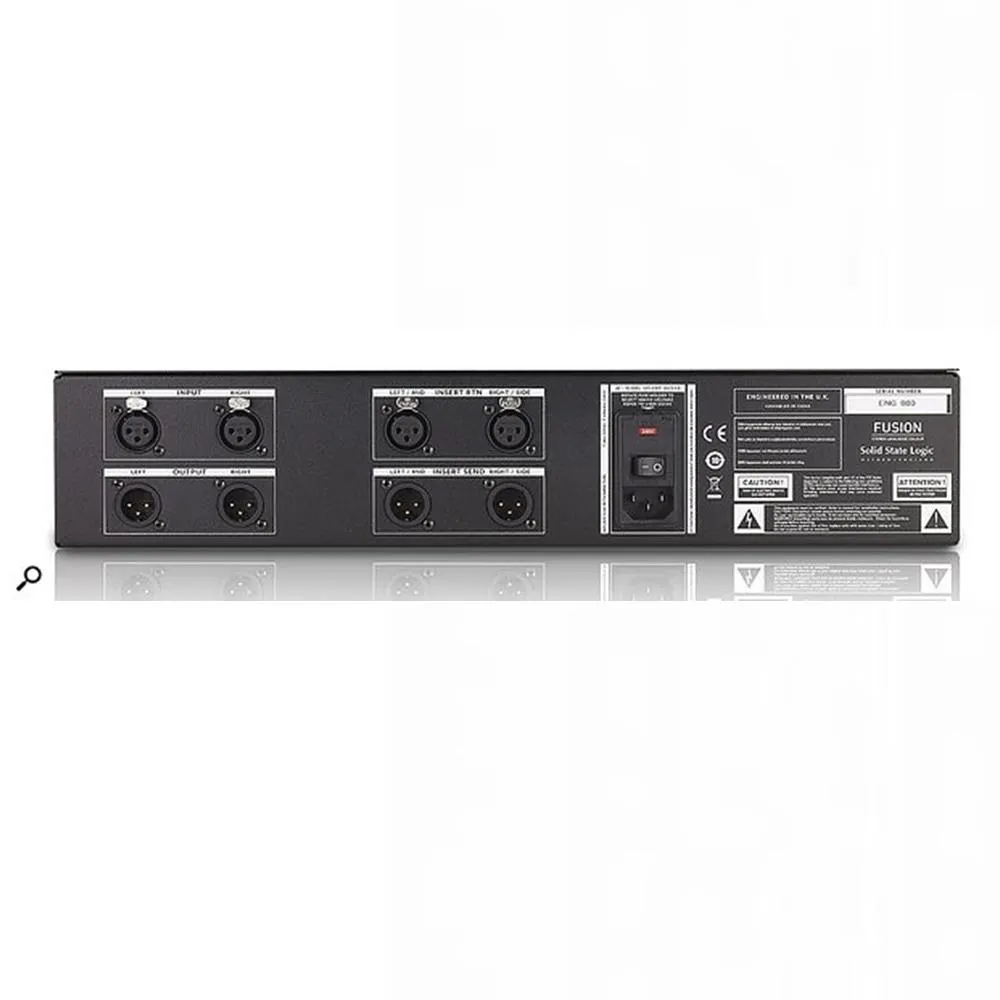

• Analog Inputs:2 x XLR (main L/R), 2 x XLR (insert return)

• Analog Outputs:2 x XLR (main L/R), 2 x XLR (insert send)

• EQ:Low Semi-parametric, High Semi-parametric, High Pass Filter

• Features:Vintage Drive, Stereo Enhancer, Mid-Side circuit, HF Compressor

• Rack Spaces:2U

• Power Supply:Standard IEC AC cable

• Weight:17.6 lbs.

• Manufacturer Part Number:729740X2
