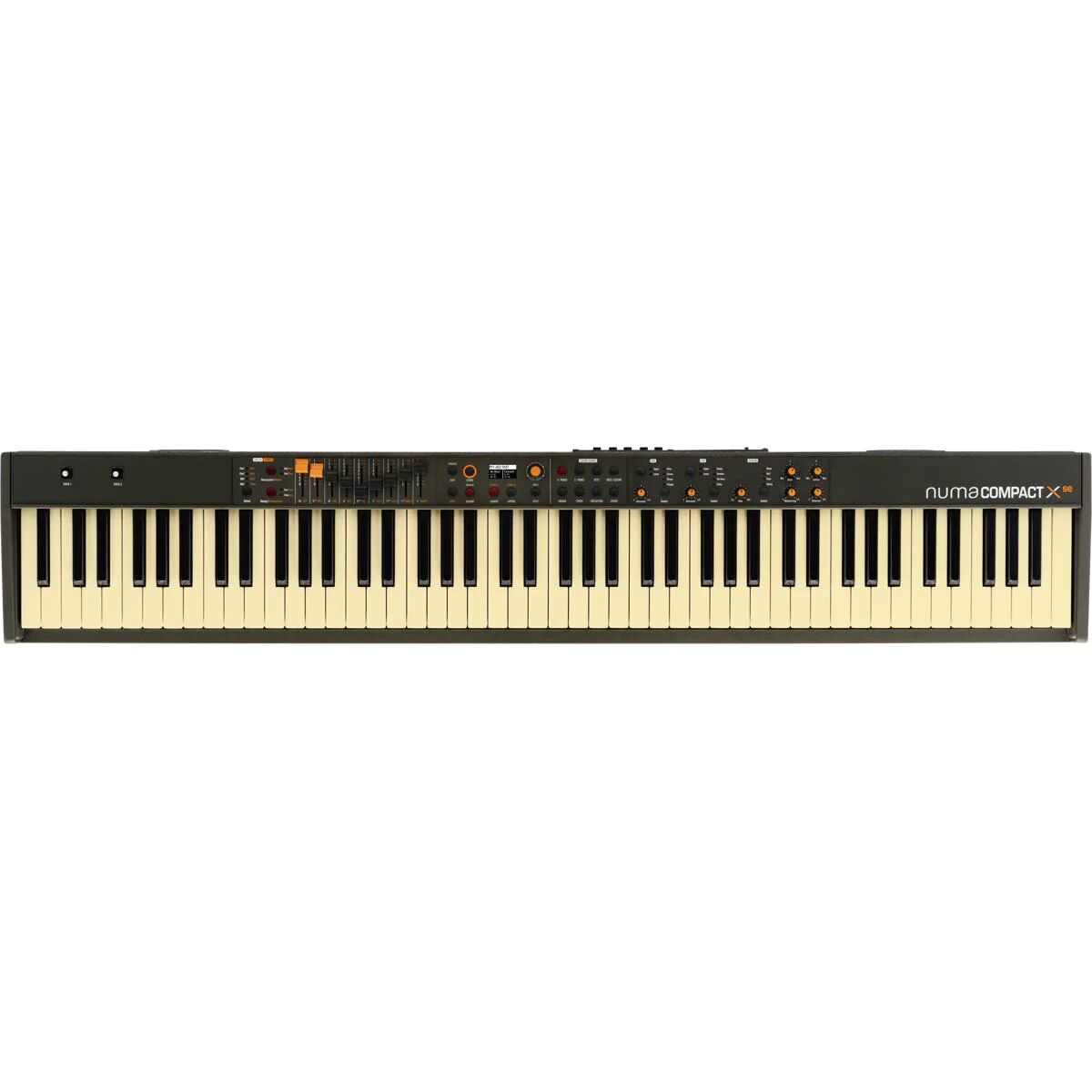

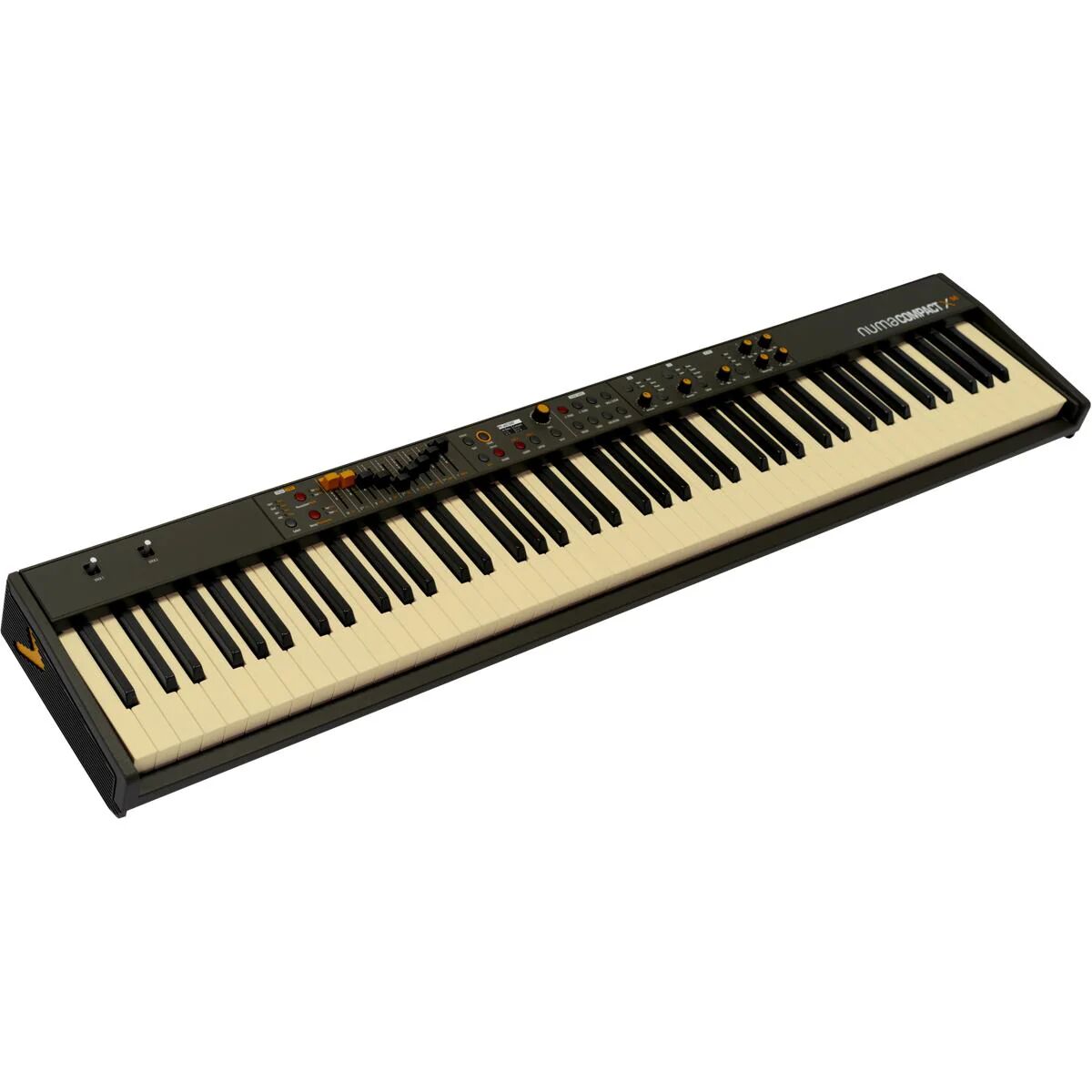

Studiologic Numa Compact XSE Stage Piano 88-Key

Numa Compact SE and Numa Compact X SE evolve thanks to the technologies derived from Numa X Piano.

Everything we loved about the Numa Compact in the same lightweight and portable cabinet is now equipped with a powerful new sound engine.

Features

• + 60% max polyphony than Numa Compact 2
• 60 more sounds than Numa Compact 2
• 4 dedicated sound engines
• TrS (True Sound) Stereo multi-samples more parameters for sound design
• 6 total sections
• 2 full-range built-in speaker
• Up to 6 effects simultaneously
• Audio over USB
• only 7kg weight

Specifications

Keyboard

• 88 Keys, TP/9 PIANO Semi-weighted Action
• Dual Switch Detection System
• Aftertouch
• Ivory Look
• Touch: Soft, Medium, Hard, Fixed (Programmable)

Sound Generation

• 148 Factory Sounds
  • 12 Acoustic Piano
  • 12 Electric Piano
  • 12 Keyboards
  • 16 Bass & Guitars
  • 24 Organs
  • 40 Synthesizers
  • 16 Orchestral
  • 16 Other Sounds
• Max Polyphony: 200 Voices
• TrS (True Sound) Stereo Multi-samples
• Additional Downloadable Sounds

Acoustic Engine

• Strings and Duplex Resonance
• Damper Noise
• Hammer Noise

Electric Engine

• Tine Dedicated Controls
• Tine Sounds for EP, Wurly, and FM Emulations
• Damper Noise

Organ Engine

• Integrated Tone Wheel Organ Model
• Real-time Control by Drawbars and Dedicated Buttons

Synth Engine

• Integrated Waveform Generator
• Real-time Control by Sliders and Dedicated Buttons

Effects / Processing

• Up to 6 Effects Simultaneously: 2 FX on Lower + 2 FX on Upper + Reverb + Strings Resonance
• Dedicated Effects for Acoustic Piano, Electric Piano, Organ, and Synth Sounds
• FX1: Drive, Chorus, Phaser, Flanger
• FX2: Rotary, Tremolo, Pan Trem, Delay
• Reverb: Room, Hall, Plate, Spring

Features

• 120 User Programs
• 1GB Samples Memory
• 6 Sections
• 2 Sounds in Layer or Split Mode
• 2 Sounds (Additional) from MIDI/USB
• 2 MIDI Zones in Layer or Split Mode
• Edit Functions: Global, Program, Part, Mixer (Lower / Upper / Zone A / Zone B Volume Control)
• Master Controls: Bass, Treble, Mastering, Volume

MIDI

• 2 Programmable Zones - A/B
• Program Change, Bank Select (LSB, MSB), MIDI Channel, Volume, Split Assign, Transpose, Octave
• Pedals 1-2 Assign, Sticks 1-2 Assign
• 9 Assignable Sliders

Speaker System

• 10 + 10W Built-in Digital Amplifier
• 2 Elliptical Full Range Speakers

Controls / UI

• OLED Display 128 x 64 Dots
• Encoder with Push Function
• 7 Potentiometers
• 23 Buttons
• 9 Drawbars / Sliders

Sticks

• Stick 1: Pitch
• Stick 2: Mod + FX Control

Connections

• Audio OUT: 2x 6.3 mm Mono Jack (L+R)
• Headphones: 6.3 mm TRS Jack (Programmable as Aux Out)
• Pedals: Expression, Universal
• MIDI: In, Out
• USB: Audio, MIDI, Power, Numa Manager

Power Supply

• DC IN: 12V
• Adapter Input: 100-240V / Output: 12V-2.5A

Size and Weight

• Width: 127 cm / 50"
• Depth: 23 cm / 9"
• Height: 10 cm / 4"
• Weight: 7.1 Kg / 15.6 lbs

Package Content

• Numa Compact SE / Numa Compact X SE
• USB Cable
• Power Adapter

Compatible Accessories

• PS/1003, PS/1503, PS/2503
• VFP1/103, VFP1/153, VFP1/253
• SLP3-D
• VP/27
• FP/50
• Softcase Size A
