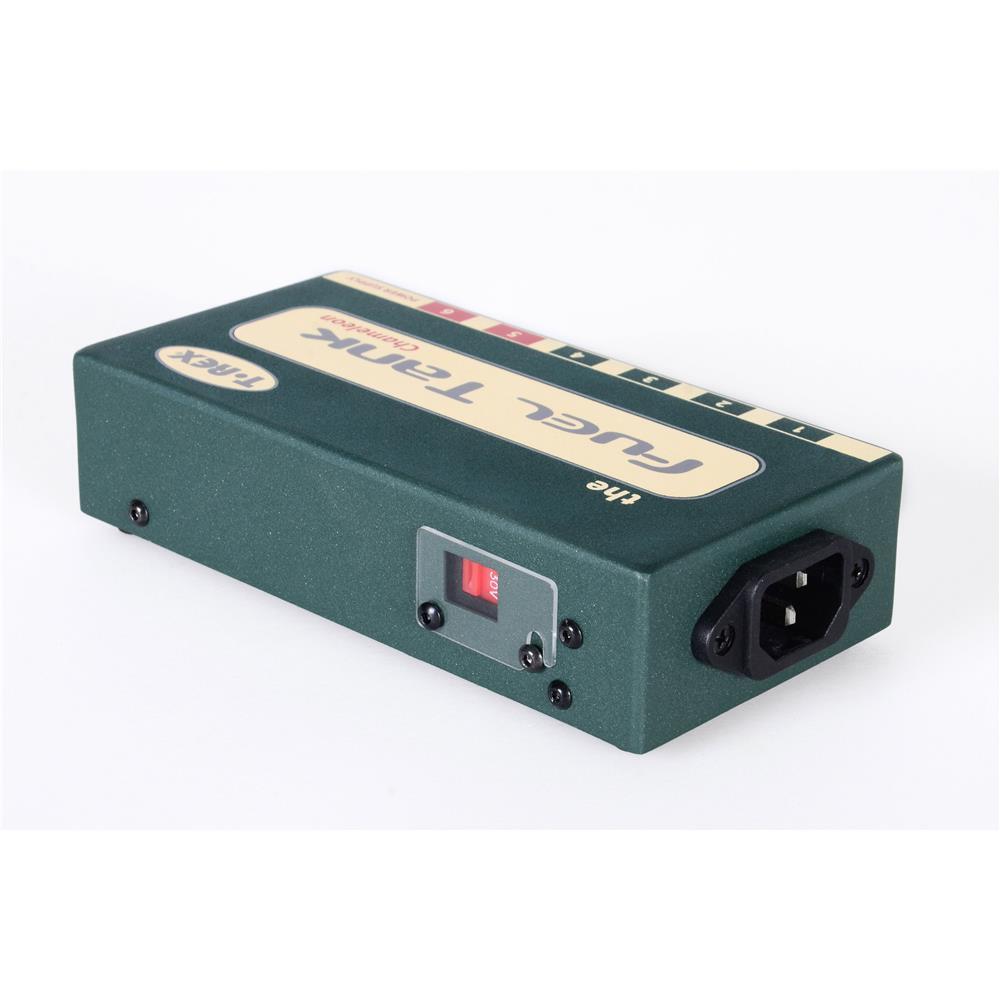

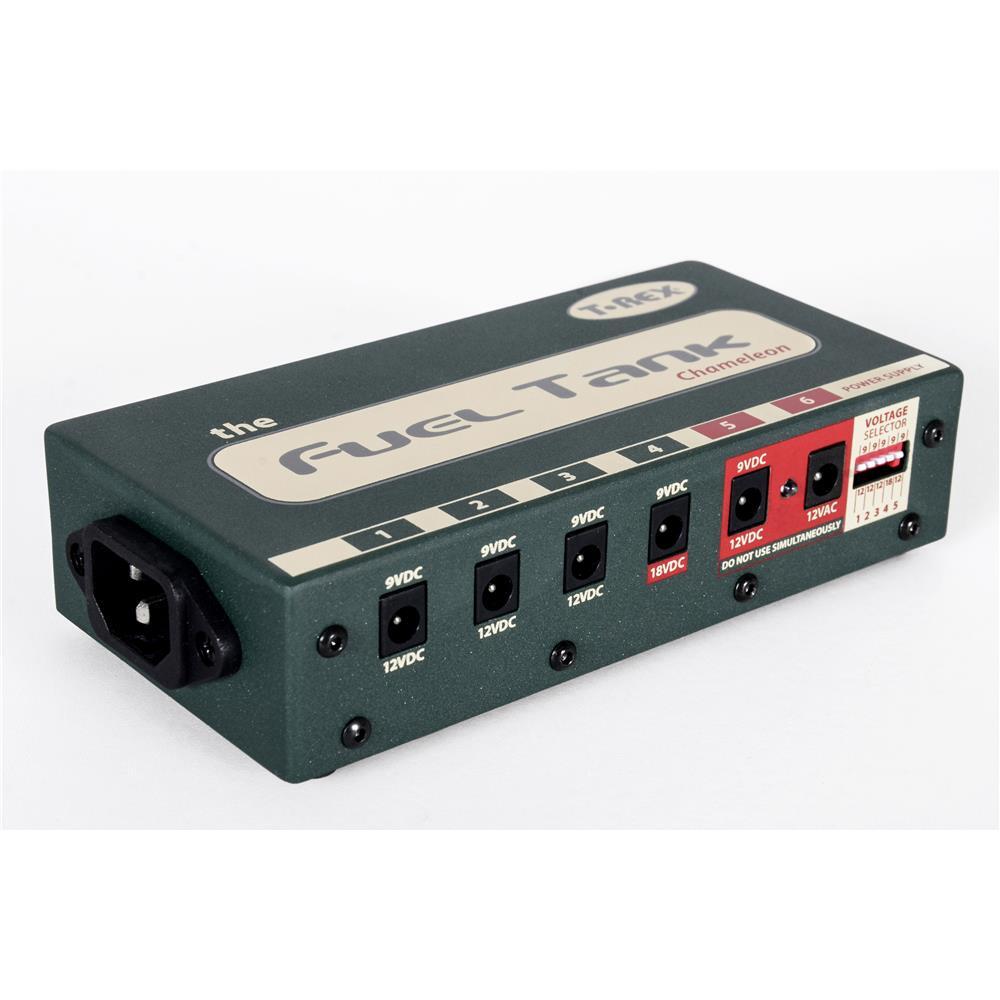

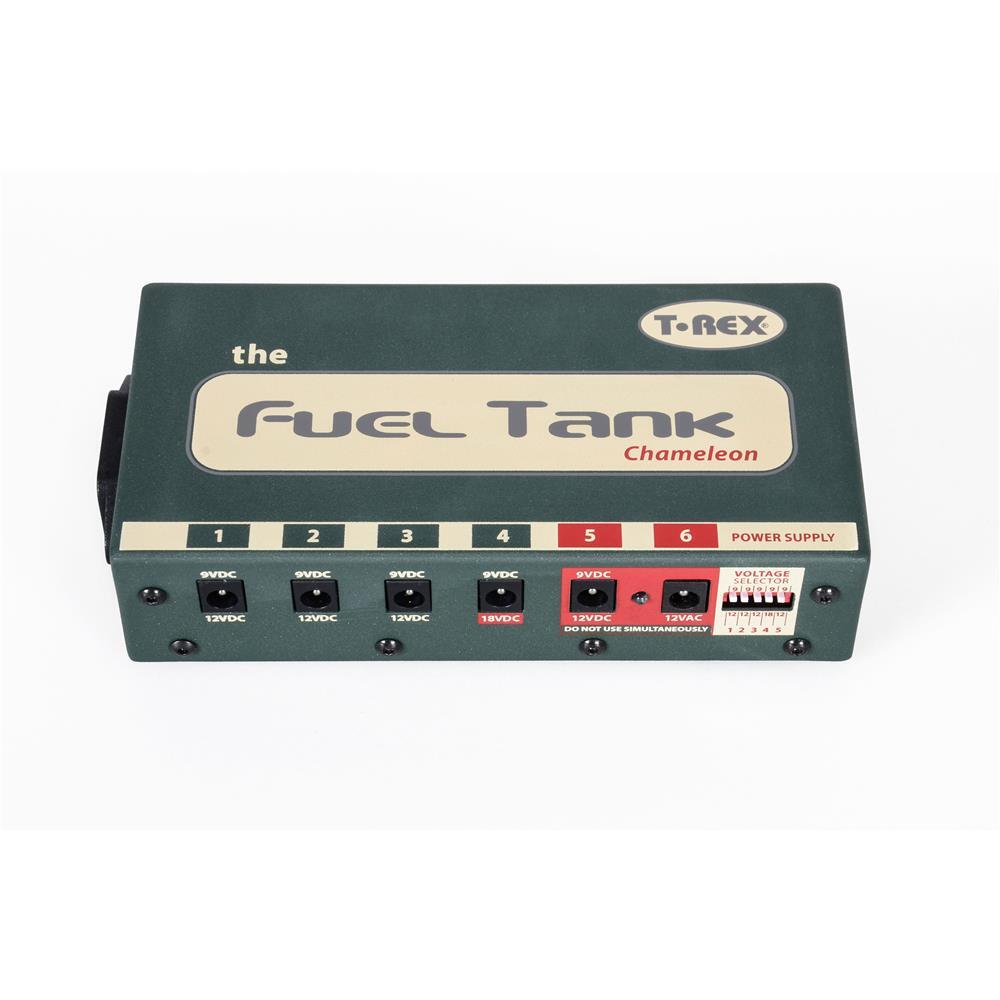

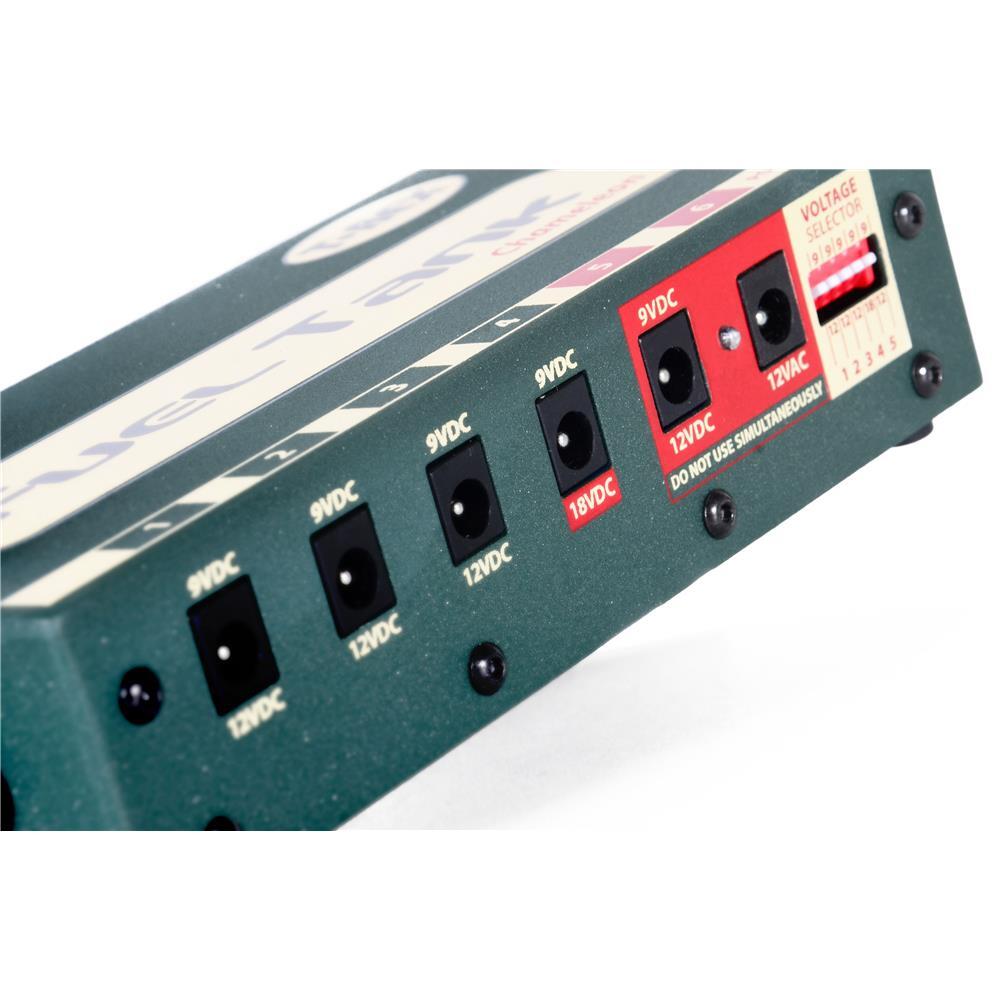

T-REX Fuel Tank CHAMELEON - Power Supply

Features

• 4 separate voltage options
• 5 outputs each with 300 mA (= 1500 mA)
• Output 5/6 choice of either 9/12v DC or 12v AC
• Choice of 9V DC, 12V DC, 12V AC or 18VDC -150mA
• Noise-cancelling galvanic isolated outputs
• Traditional EI Transformer
• Several different voltage types served
• Current doubler = the possibility of as much as 600 mA
• Switchable 115V or 230V
• Compact, rugged, road-ready design

Tech Specs

• Input mains voltage: Switchable 115V or 230V mains
• Rated power consumption: Max. 40W
• Fuse: T315mA/250V
• Pedal size incl. knobs (W x H x D): 160 x 38 x 80 mm / 6,3 x 1,5 x 3,2 inch
• Weight excl. packaging: 0,790 kg / 27,87 oz

• Connections:
- Chameleon has 6 isolated outpurts:
- All 9V and 12V outlets delivers 300mA. When outlet 4 is switched to 18V DC it delivers 150mA
- All outlets are centre negavive

• Cables
- 1x Red 50cm AC cable with 2,1mm - 2,5mm connectors for use on the 12V AC outlet
- 1x Blue 50cm AC cable with 2,5mm - 2,5mm connectors for use on the 12V AC outlet
- Black 50cm DC cable with 2,1mm DC - 3,5mm mini-jack connectors
- Black link DC cable with five 2,1mm - 2,1mm connectors
- Black 20cm DC cable with 2,1mm - 2,1mm connector
- Black 50cm DC cable with 2,1mm - 2,1mm connector
- Black 75cm DC cable with 2,1mm - 2,1mm connector
- Black 100cm DC cable with 2,1mm - 2,1mm connector
- Mains power cable



SKU RX-FT-CHAMELEON
Barcode # 811059013343
Brand T-Rex
Shipping Weight 1.4000kg
Shipping Width 0.200m
Shipping Height 0.060m
Shipping Length 0.250m
Shipping Cubic 0.003000000m3
Unit Of Measure ea
