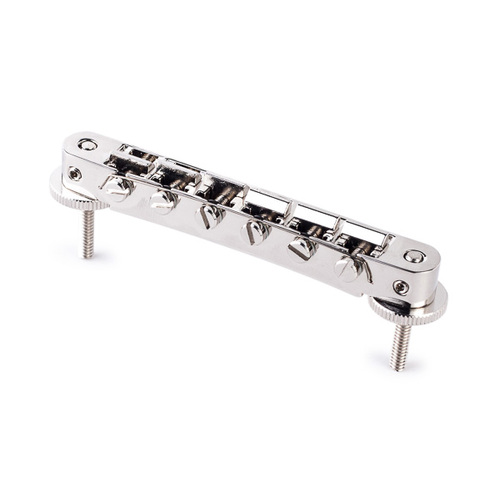

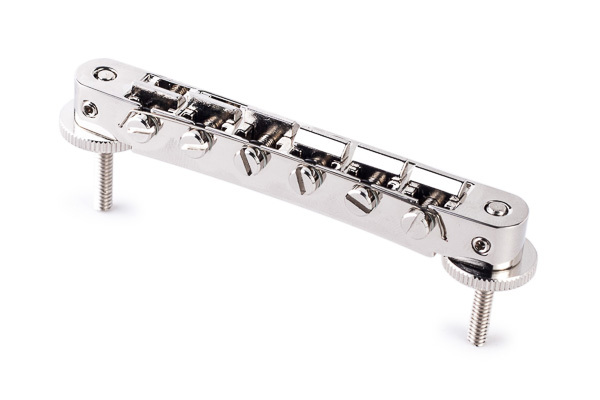

TonePros AVR2 Locking ABR-1 Style Bridge — Nickel (AVR2-N)

The TonePros AVR2 is the definitive upgrade for vintage and vintage-reissue guitars originally fitted with ABR-1 style bridges. It replicates the exact visual profile of the original ABR-1 — maintaining the authentic vintage appearance that collectors and purists require — while addressing every known mechanical weakness of the original design. Engineered-in saddles that cannot lift, extended intonation range, extra-tight construction that eliminates rattles and improves sustain, and locking mounting posts that prevent the bridge from moving in its posts. A direct retrofit for most vintage and USA-reissued guitars without modification. Nickel finish.

What Is an ABR-1 Style Bridge?

The ABR-1 is the original tune-o-matic bridge design — the bridge format introduced on the Gibson Les Paul in 1954 and used on virtually all Gibson archtop and carved-top electric guitars since. The ABR-1 is distinguished from the later Nashville tune-o-matic by its smaller footprint, narrower string spacing and the use of a thin retainer wire that holds the individual saddles in position.

ABR-1 bridges are found on:

• Vintage Gibson Les Paul, SG, ES-335, ES-175 and other archtop models from the 1950s through the 1970s
• Gibson USA vintage reissue models — Historic Collection, Custom Shop and similar
• Many boutique and high-end Les Paul and archtop style guitars that replicate the vintage Gibson specification

The ABR-1 uses a different stud and post diameter to the Nashville tune-o-matic — the two are not interchangeable. The TonePros AVR2 uses ABR-1 specification mounting posts and retrofits to ABR-1 specification threaded inserts without modification.

Engineered-In Saddles — The Most Important Improvement

The most practically frustrating problem with original ABR-1 bridges is saddle retention. The original design holds six individual saddles in position using a thin retainer wire that clips across the front of the saddle row. Under string tension the saddles are held in place adequately. The moment string tension is removed — during a string change — saddles are free to pivot over the retainer wire and fall off the bridge entirely.

This is a problem that every player who has ever changed strings on a vintage Gibson has encountered. Saddles fall into the guitar's body cavity, onto the floor, into carpet — and the original retainer wire design provides no solution.

The TonePros AVR2 uses engineered-in saddles — the saddles are retained in the bridge by an integrated mechanical system rather than a retainer wire. They cannot lift out. They cannot fall off during string changes. The saddles are in position when the strings are on and they are in position when the strings are off. This single improvement eliminates the most common frustration associated with ABR-1 style bridges.

Extended Intonation Range

The original ABR-1 bridge has a limited intonation adjustment range — the saddles can only travel so far forward and backward in their slots. For many players on wound strings or players whose instrument has slight scale length variation from the nominal specification, the original ABR-1's intonation range is insufficient to achieve correct intonation across all six strings.

The TonePros AVR2 provides more intonation range than the original — allowing correct intonation to be achieved on a wider range of string gauges and scale length combinations without the saddle running out of adjustment travel. This is particularly useful for players who use heavier string gauges or wound G strings, where intonation requirements fall outside the original ABR-1's adjustment range.

Locking Mounting Posts — Eliminates Bridge Movement

TonePros bridges use a locking post system — the bridge posts lock into the mounting studs rather than sitting loosely in them. Original ABR-1 bridges sit on posts that are threaded into body studs, and the fit between the post and the stud is rarely tight enough to prevent all movement. Any movement of the bridge on its posts — even micro-movement — represents energy that is not being transferred into the guitar body as sustain.

The TonePros locking system eliminates this movement. The posts are locked in position and the bridge sits on them rigidly. The mechanical result is improved sustain and the elimination of the subtle rattles that loose bridge posts contribute to at certain frequencies and volume levels.

Extra-Tight Construction Throughout

Beyond the locking posts, the TonePros AVR2 is manufactured to tighter tolerances throughout than original ABR-1 bridges and most aftermarket alternatives. The saddle slots, the bridge housing dimensions and the post fit are all controlled to eliminate the looseness that contributes to rattle and sustain loss. The practical result is a bridge that is quieter — no sympathetic rattles at resonant frequencies — and one that transfers more string vibration energy into the body rather than losing it to mechanical movement within the bridge itself.

Vintage Appearance Preserved

The TonePros AVR2 maintains the exact visual profile of the original ABR-1. The bridge height, the saddle profile, the overall footprint and the nickel finish are matched to the vintage original — the upgrade is mechanically transparent to anyone looking at the guitar. For players on vintage or vintage-reissue instruments where visual authenticity is important, the AVR2 delivers all of its mechanical improvements without any visible departure from the original specification.

Direct Retrofit — No Modification Required

The AVR2 retrofits directly to most vintage and USA-reissued guitars that were originally fitted with ABR-1 style bridges — using the same mounting stud holes and threaded inserts. No drilling, no routing and no permanent modification to the guitar body is required. The bridge is a direct replacement that can be installed and removed without any lasting change to the instrument.

Specifications

Professional Installation Available

Bridge installation on a vintage or vintage-reissue instrument requires correct setup — string height, intonation and post height all need adjustment after fitting. Our workshop team at Angkor Music can install and set up the AVR2 professionally.

Expert Advice at Angkor Music

At Angkor Music Melbourne we stock TonePros hardware and can advise on compatibility for your specific instrument before you purchase.

★★★★★
