Optimize Your Acoustic-electric Guitar

Plugging your acoustic-electric guitar directly into the PA is convenient. But you're at the mercy of the engineer. That's why Trace Elliot created the Transit A acoustic preamp pedal. Plug into the Transit A before connecting to the PA. It has all the tone-shaping tools you need to achieve a professional sound: a 3-band EQ, Chorus, Delay, Reverb, a tuner, and more!  We appreciate how the Transit A's color-coordinated backlit controls make it easy to see on a dark stage. And it fits in your guitar case! The Trace Elliot Transit A acoustic preamp pedal includes a high-quality embroidered carry bag and top-notch software package.

All the tools you need to achieve a professional sound

• 3-band EQ for tone-shaping
• Chorus and Reverbwith simple 1-knob operation
• Delay with Level, Feedback, and Tap-Tempo controls
• Phase Reverse for fixing stubborn phase issues
• Notch Filter for removing problem frequencies
• Piezo for increasing your input impedance
• Boost with user-definable parameters puts you in front of the mix
• Input Gain and Output Level for proper gain staging
• Pre-shape for classic Trace Acoustic EQ curve
• Chromatic Tunerkeeps you in tune

Trace Elliot Transit A Acoustic Preamp Pedal Features:

• Maintain consistency of tone when plugging your acoustic-electric guitar directly into a PA

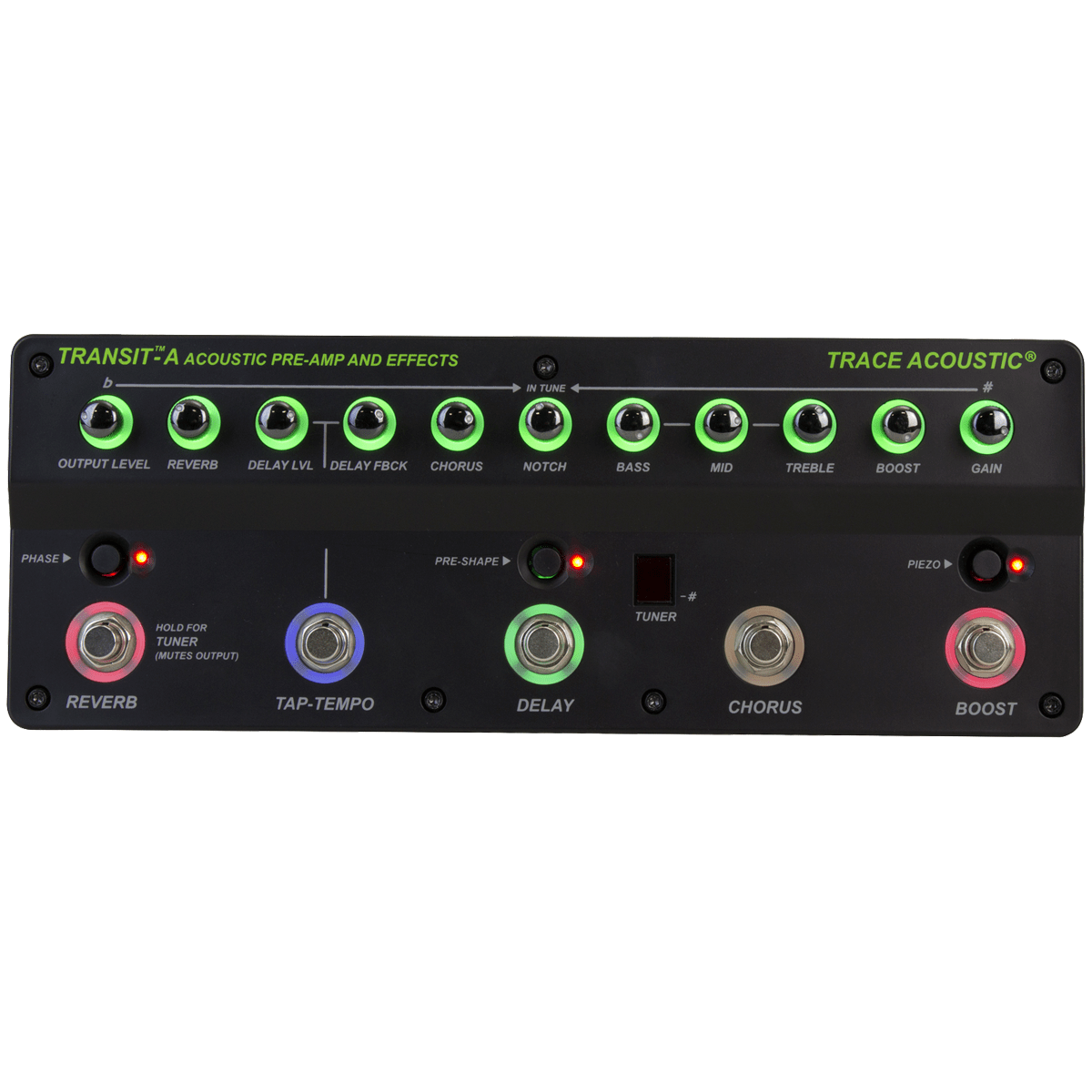

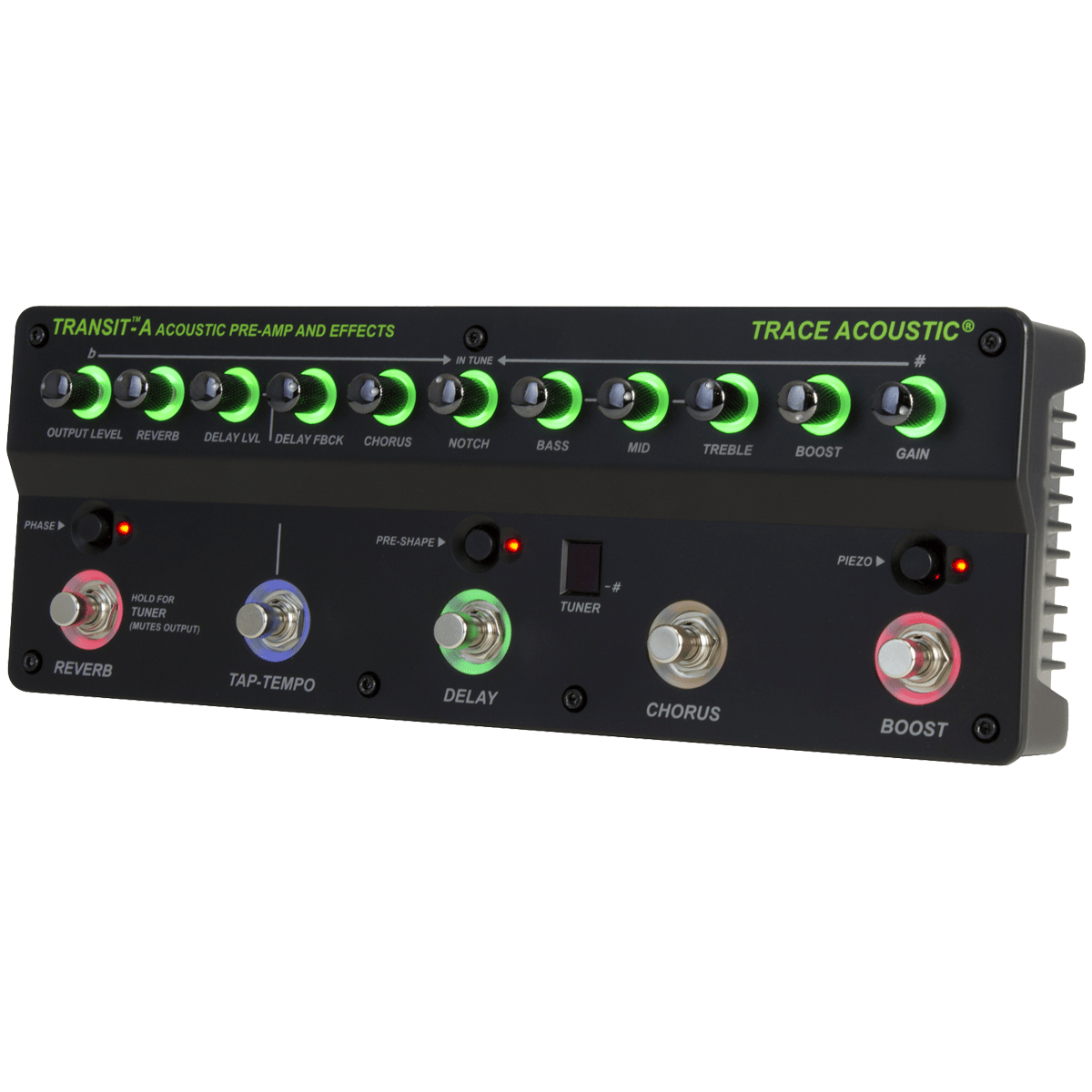

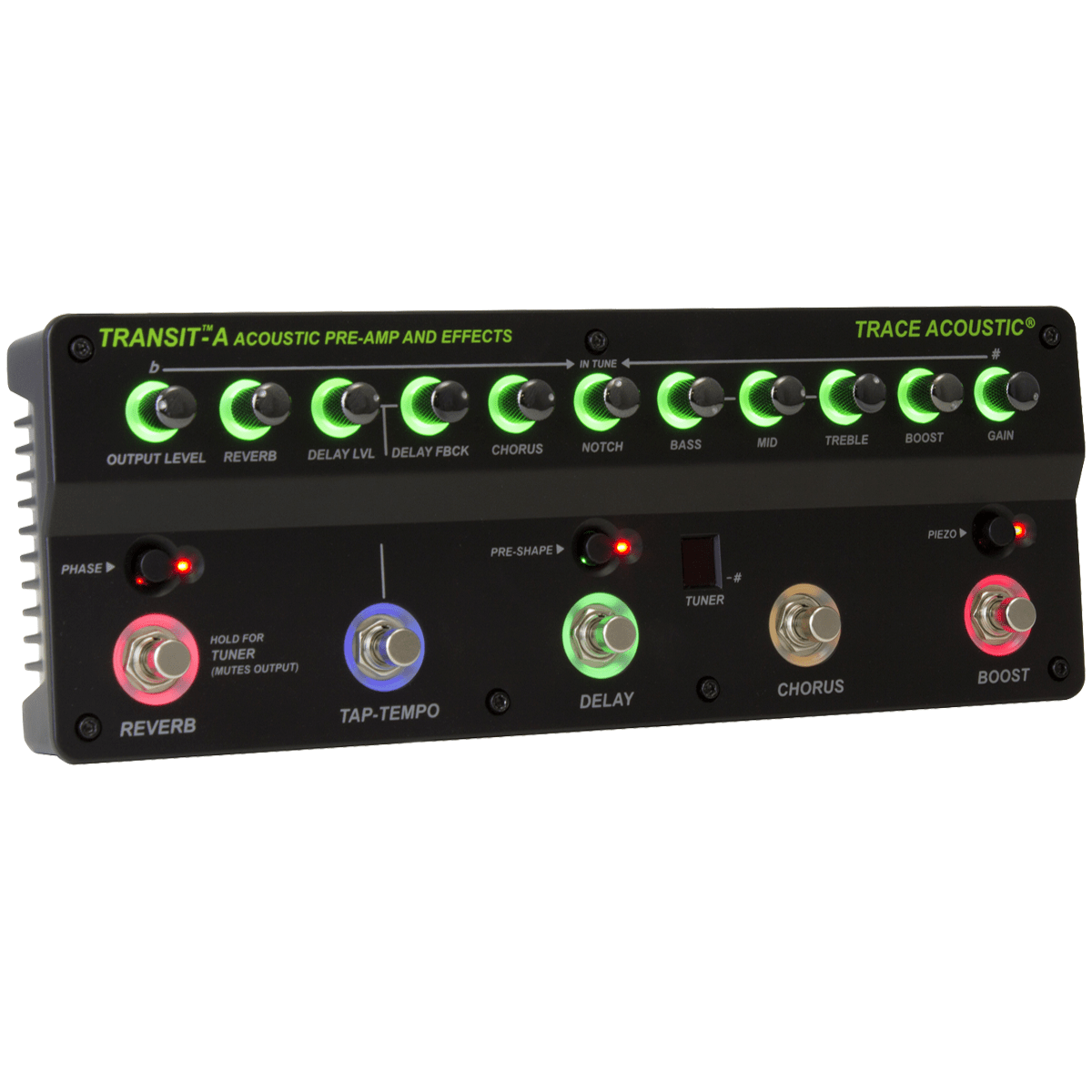

• Color-coordinated backlit controls are easy to see on a dark stage
• Stereo outputs and Dry output for achieving a proper effects balance
• Pre and post balanced XLR outputs with ground lift
• Aux input for connecting smartphones and media players
• Phones output for silent practicing

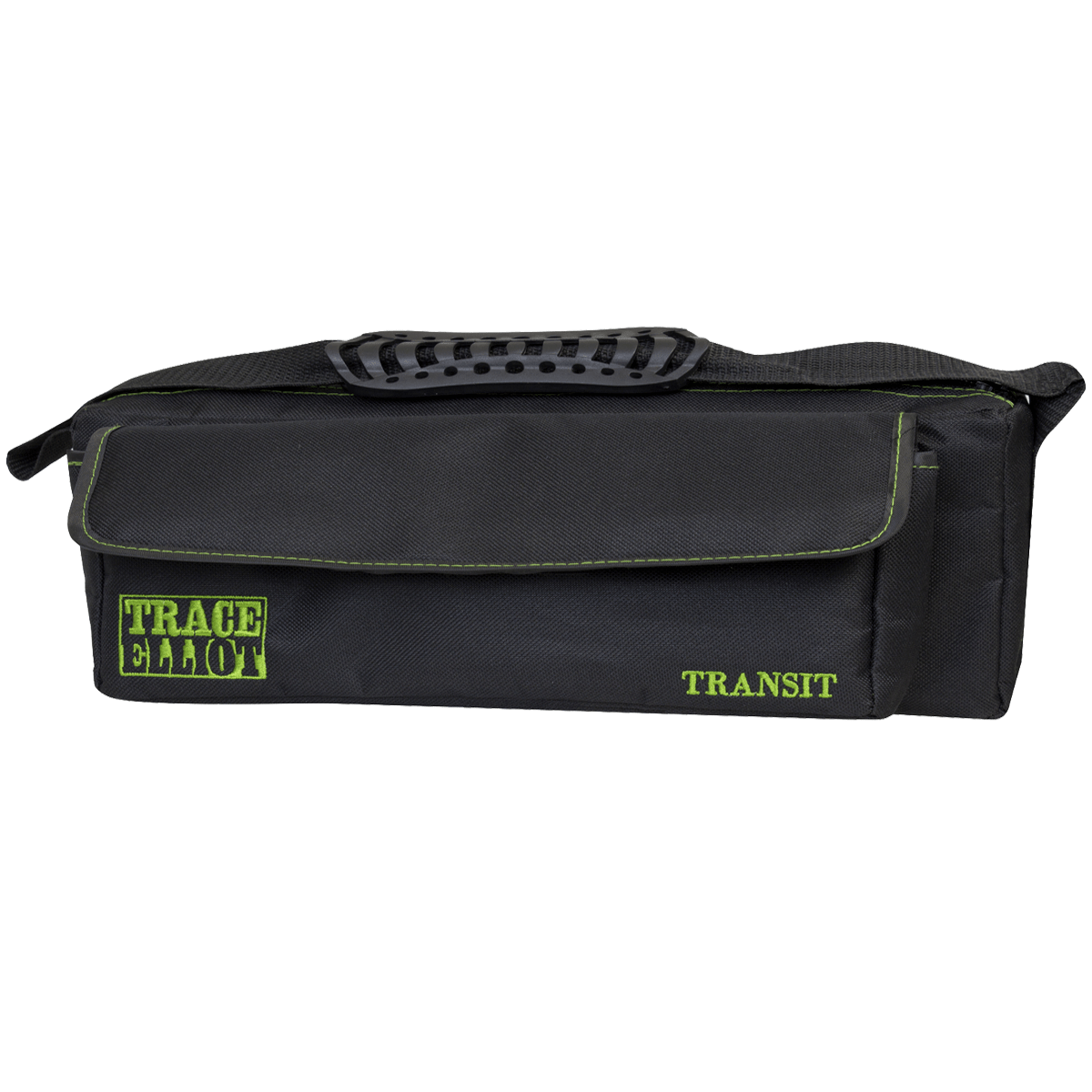

• Includes high-quality embroidered carry bag, Reaper DAW, and Peavey ReValver amp modeling software

Tech Specs

• Type:Acoustic Preamp, Multi-FX
• Effects Types:Reverb, Delay, Chorus

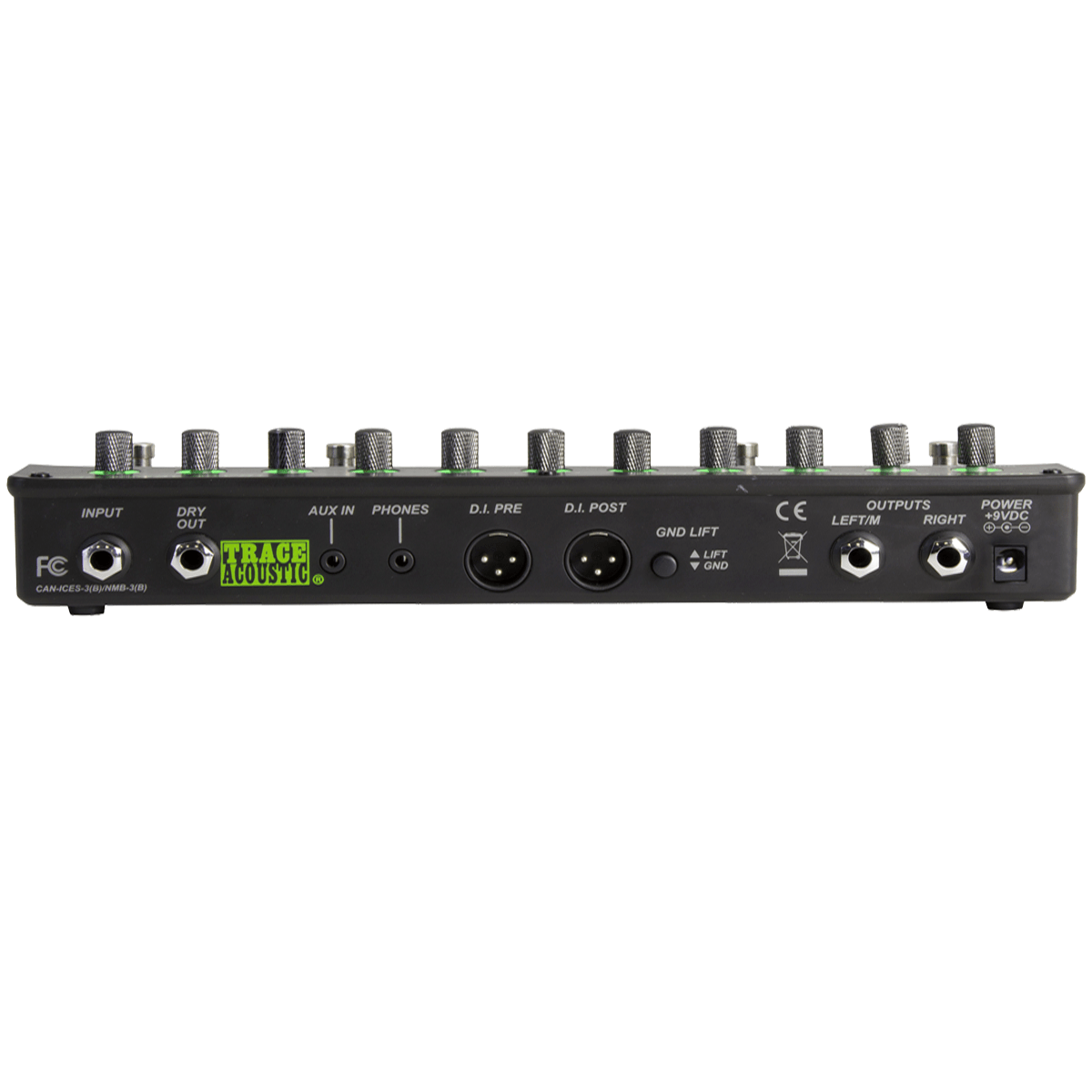

• Inputs:1 x 1/4" (instrument), 1 x 1/8" (aux in)
• Outputs:1 x 1/4" (dry out), 1 x 1/8" (headphones), 2 x XLR (DI pre, DI post), 2 x 1/4" (main out)
• Power Source:9V DC power supply (included)
• Height:2.3"
• Width:12.3"
• Depth:4.5"
• Weight:2.6 lbs.
• Manufacturer Part Number:03616150
