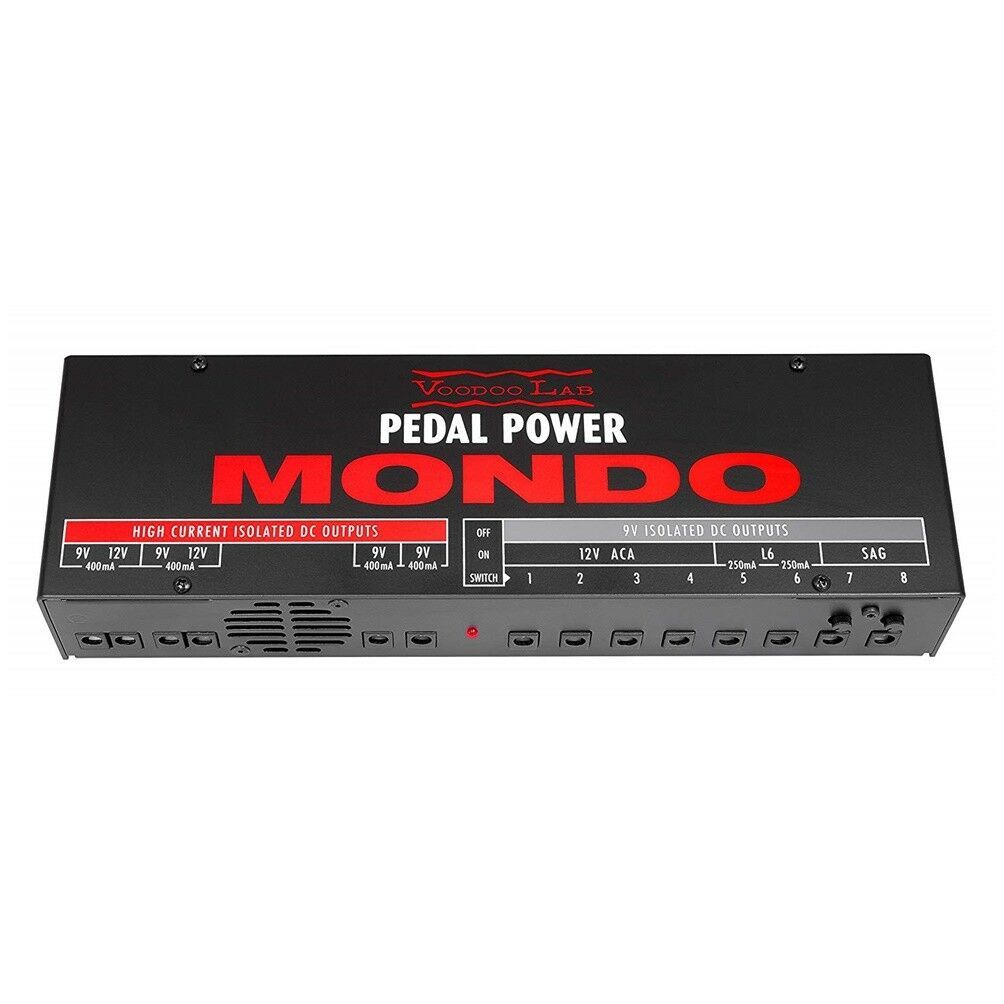

Mondo Isolated Power Supply



Features



• 12 isolated outputs sections eliminate ground loops and hum

• All outputs compatible with 9V battery operated pedals

• Six outputs high-current capable for modern digital effects

• Powers Strymon, Eventide, Line 6, Boss Twin, TC Nova, Moog and more

• Two outputs with Sag simulate low battery

• Toroidal transformers and linear regulation for lowest possible noise

• Includes cables and detachable AC line cord

• Courtesy AC outlet

• Engineered and handmade in the USA



Specifications



• Input: Standard IEC connector 240V Australian Power

• Outputs: 5.5x2.1mm barrel connectors center negative; Linear regulation; Short circuit protected

• Two 9VDC + 12VDC (400mA), Two 9VDC (400mA), Two 9VDC (250mA), Four selectable 9VDC (100mA) or 12VDC (60mA), Two 9VDC (100mA) with SAG controls

• Dimensions: 10.7" x 3.4" x 1.8" (272 x 86 x 45 mm)

• Weight: 2.8lb. (1.3 kg)

• Included DC power cables: 5.5x2.1mm right angle barrel connectors (10), 5.5x2.1mm straight barrel connectors (2), 5.5x2.5mm right angle "red" barrel (5), 3.5mm right angle mini plug (1), 9V battery snap (1)
