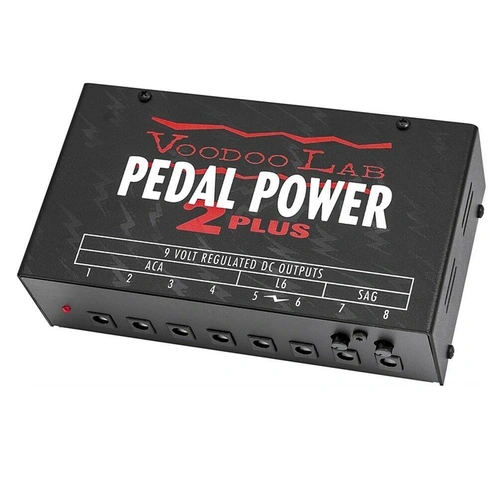

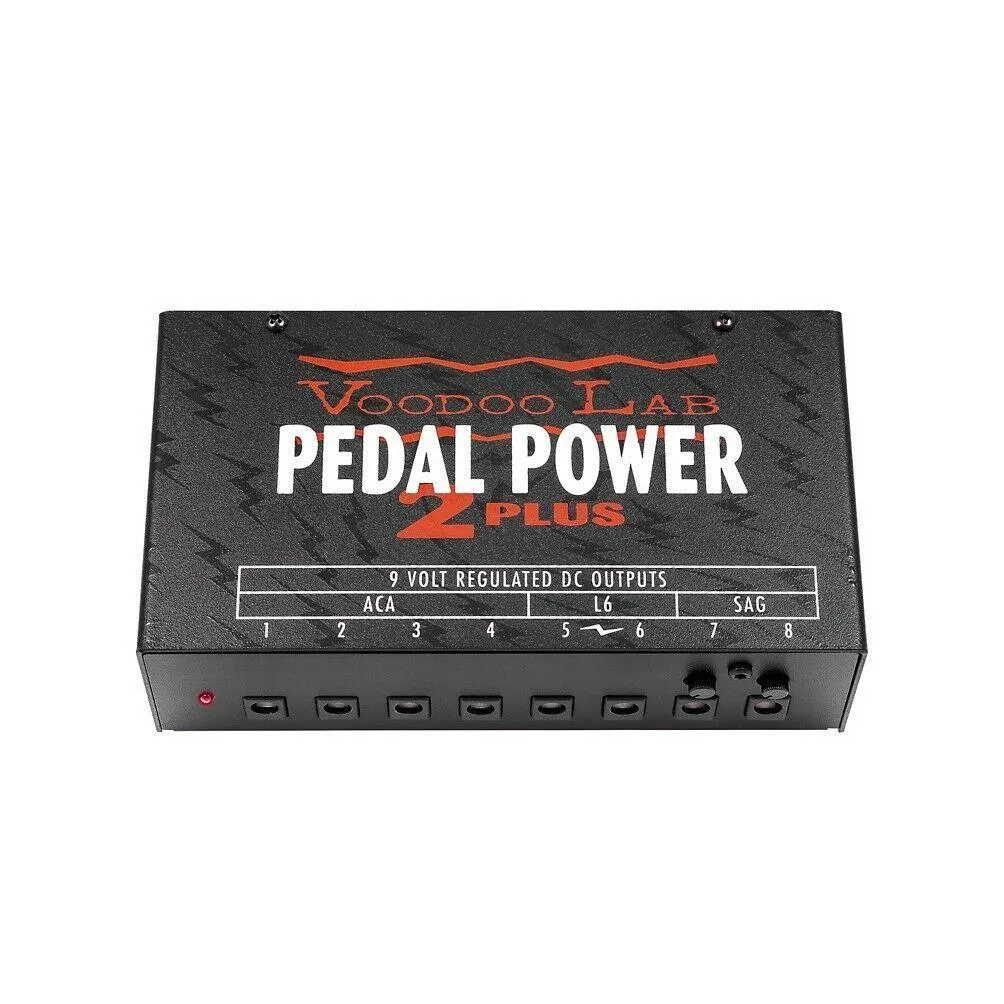

Pedal Power 2 Plus 9V 12V 18V 24V DC Effect Pedal Power Supply



• Australian 240V model

• Filter, regulate, isolate, and protect

• Uses an audiophile quality linear supply for consistently stable, clean, pure power.

• Comes complete with cables, detachable AC power cord, and a 5-year warranty.

• Hand made in the U.S.A.



Features



Isolation

• Breaks the unwanted ground path

• Isolates Every output

• Eliminates tone robbing interaction between units



Proprietary balanced transformer

• Custom designed, ultra-low noise to roidal transformer

• Separate balanced windings for every output



9V (x2) – High Current 9V and Line 6 Modelers

• These two outputs each deliver 250mA allowing you to run high current draw effects like the Boss DD-20 Giga Delay or Line 6 DL4 Delay Modeler.

• Via switches underneath the Pedal, these two outputs can be separately configured for regulated (Boss Twin Pedals) or unregulated (Line 6 Modelers) power allowing you to run both units if so desired.

• These outputs can also power any standard 9V effects as well.



9V (x2) – Standard 9V With Battery Sag Control

• These outputs each have an available 100mA of power, but also allow you to SAG the voltage from roughly 4V to 9V.

• This feature can be enabled via the bottom panel switches.

• The SAG control is mostly useful for transistor-based fuzz, octavia, and distortion circuits, as most modern opamp designs are minimally affected by variations in supply voltage.

• We recommend turning SAG off if you’re going to run digital pedals like delay, chorus, and reverb.



18V/24V – Using Custom Cables

• All of the outputs are completely isolated allowing you to create different voltages.

• You can run effects like the current MXR Flanger by combining two 9V outputs to create a single 18V supply.

• By switching two outputs into 12V ACA mode, you can join them together to create a 24V output for powering numerous Electro-Harmonix stompboxes including the Deluxe Memory Man.



Short Circuit Protection

• Each output on the Pedal Power 2 Plus is short-circuit protected.

• If you have a short in a power cable, or one of your pedals malfunctions, PP 2 Plus will temporarily turn off the power to that pedal.

• All other outputs will continue to function normally with no long-term damage.



Input

• IEC connector

• 230V 50/60Hz (Europe/Australia model)

• Model and input power are marked on the bottom of unit.



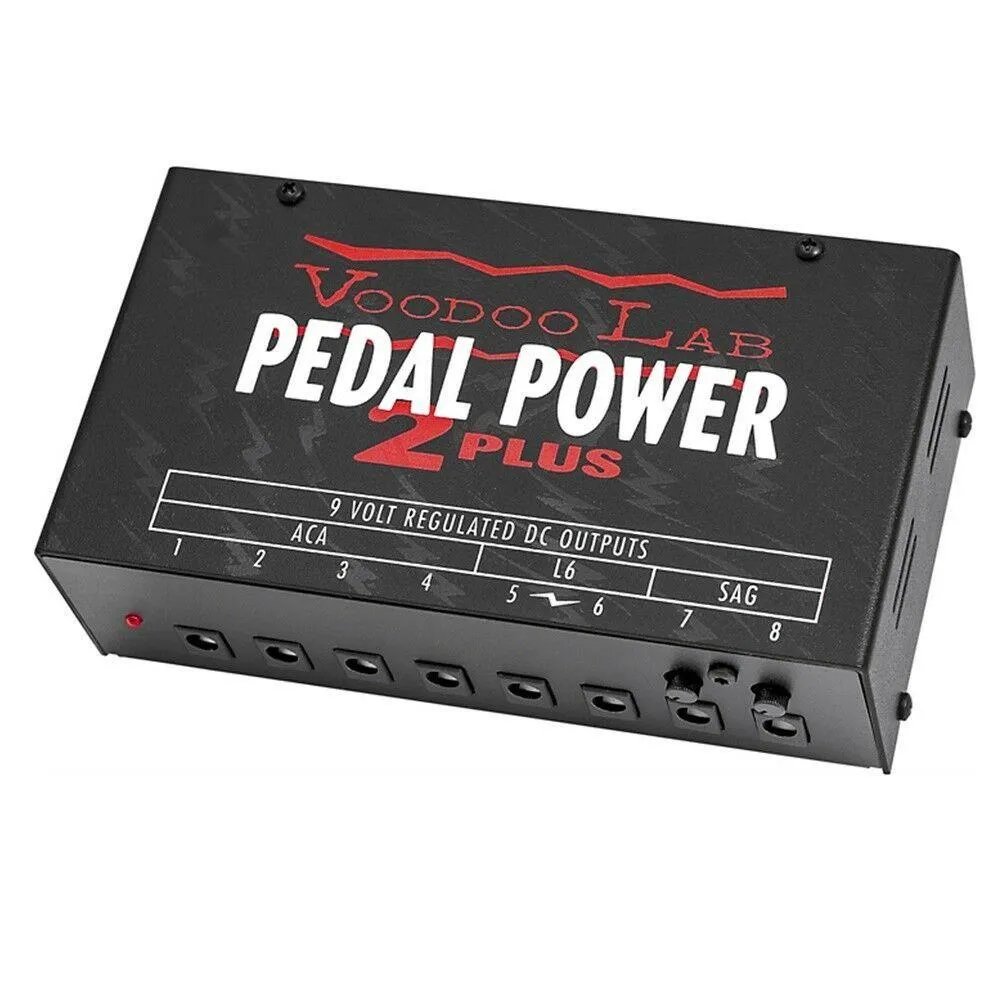

DIP Switch: NORMAL (Output, DC Voltage, Max current)

• 1-4 (ACA), 9V, 100mA

• 5-6 (L6), 9V, 250mA

• 7-8 (SAG), 9V, 100mA



DIP Switch: ON (Output, DC Voltage, Max current)

• 1-4 (ACA), 12.3V, 60mA

• 5-6 (L6), 14.5V / 12V (unregulated), 50mA / 200mA+

• 7-8 (SAG), Adjustable 4V - 9V, 100mA



Physical

• 6" wide x 3.4" deep x 1.8" tall (152 x 86 x 44 mm)

• Weight: 2 lbs. (0.9 kg)



Special

• Toroidal power transformer

• Rear Courtesy Auxiliary AC outlet, 200 watts max

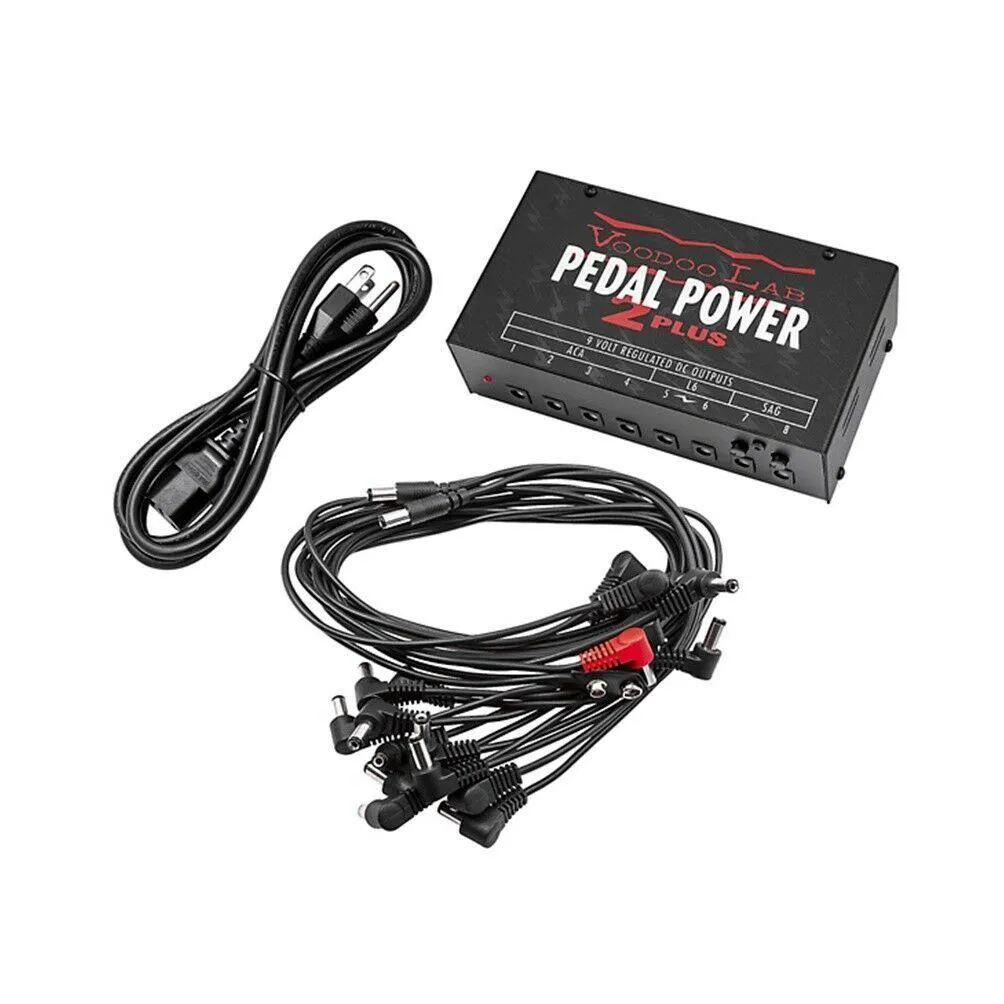

Included Cables

• 5.5x2.1mm right angle barrel connectors (6)

• 5.5x2.1mm straight barrel connectors (2)

• 5.5x2.5mm “red” barrel for L6 (1)

• 3.5mm mini plug for vintage MXR or Electro-Harmonix (1)

• 9V battery snap for pedals without a power jack (1)



Important Note:

Pedal Power 2 Plus is manufactured to operate from a specific supply voltage. There are three different models, which accept 100V, 120V, or 240V mains. All units sold in North America are for 120V only. You cannot operate a 120V Pedal Power using 240V power without the correct step down transformer. The supply voltage is marked on the bottom of the unit.
