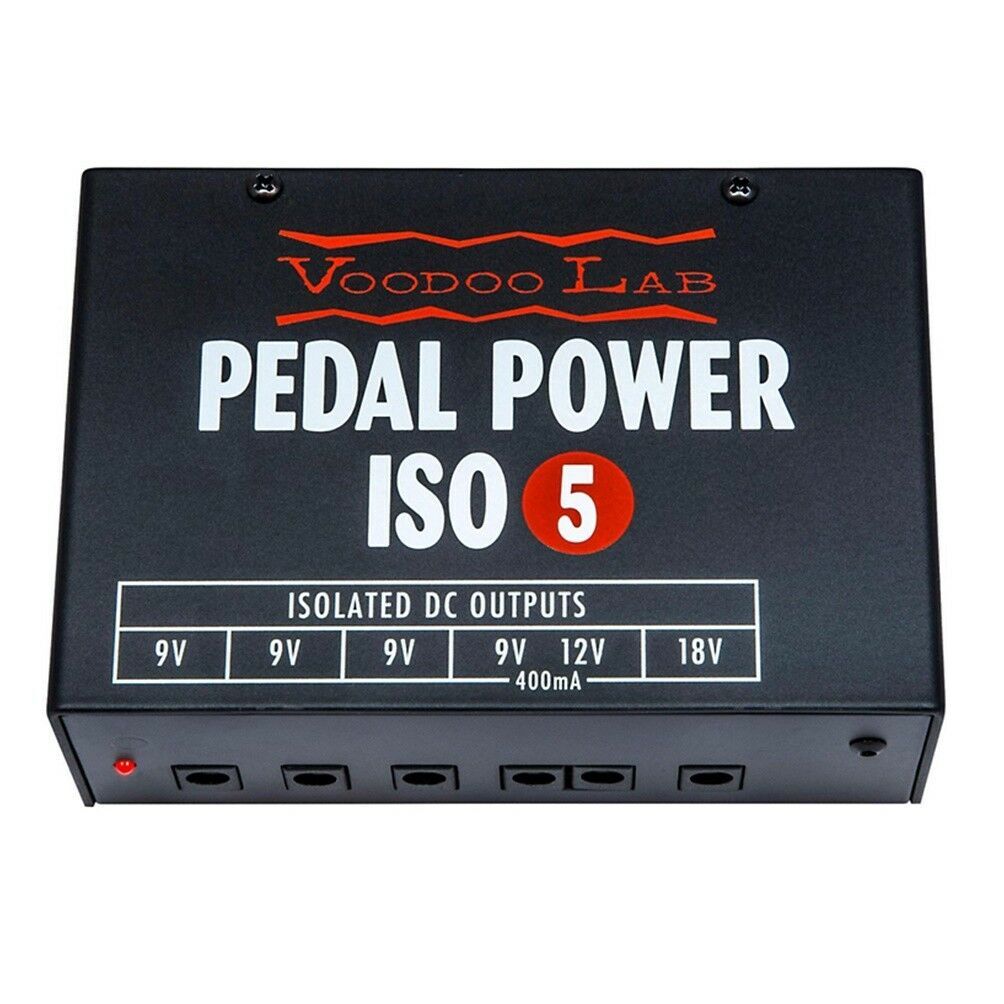

Pedal Power ISO 5 9V 12V 18V DC Pedal Power Supply

Features

• Five isolated outputs
• Compatible with all battery operated pedals
• Linear regulation and toroidal transformer for lowest possible noise
• Compact design fits small pedal boards and rack shelves
• Provides clean, consistent power, even with the poor AC line conditions often found on stage
• Eliminates ground loops, hum, and unwanted interactions between effects
• Engineered and handmade in the USA

Includes
• High current 9V and 12V outputs
• Dedicated 18V output

Specifications

• Input: IEC connector
• 240V 50/60 Hz (Australian model)
• Model and input power are marked on the bottom of unit
• Outputs: 5.5 x 2.1 mm barrel connectors center negative
• Short circuit protected.
• 9VDC (3) - 100mA
• 9/12VDC - 400mA
• 18VDC - 100mA
• Dimensions (WxDxH): 4.9 x 3.4 x 1.8 in. (124 x 86 x 44 mm)
• Weight: 1-1/4 lb.
SKU VDL-PI
Barcode # 0813140001222
Brand Voodoo Lab
Shipping Weight 1.1200kg
Shipping Width 0.231m
Shipping Height 0.060m
Shipping Length 0.270m
Shipping Cubic 0.003742200m3
Unit Of Measure ea
