Zoom L-20R Livetrak Digital Mixer / Recorder 20-channel Rackmount Digital Mixer

Name: Zoom L-20R Livetrak Digital Mixer / Recorder 20-channel Rackmount Digital Mixer
Brand: Zoom
SKU: L-20R
Availability: OutOfStock

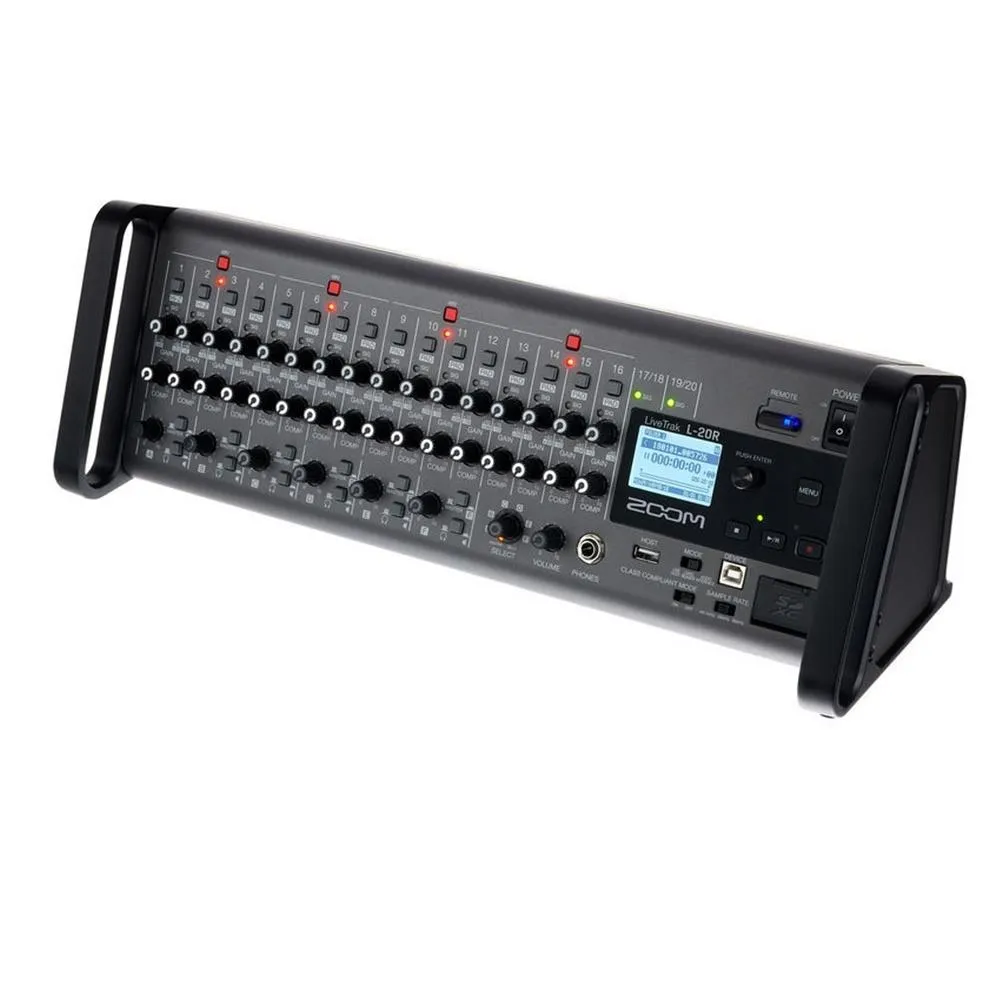

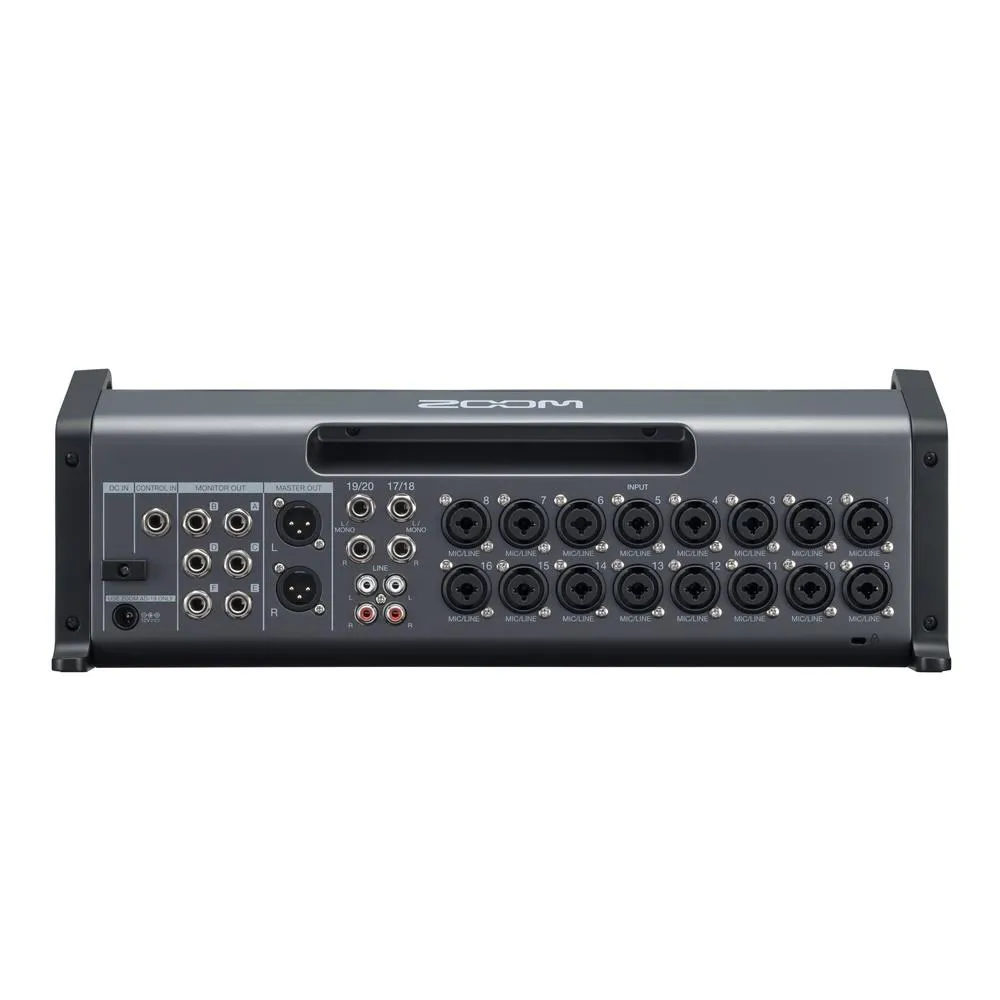

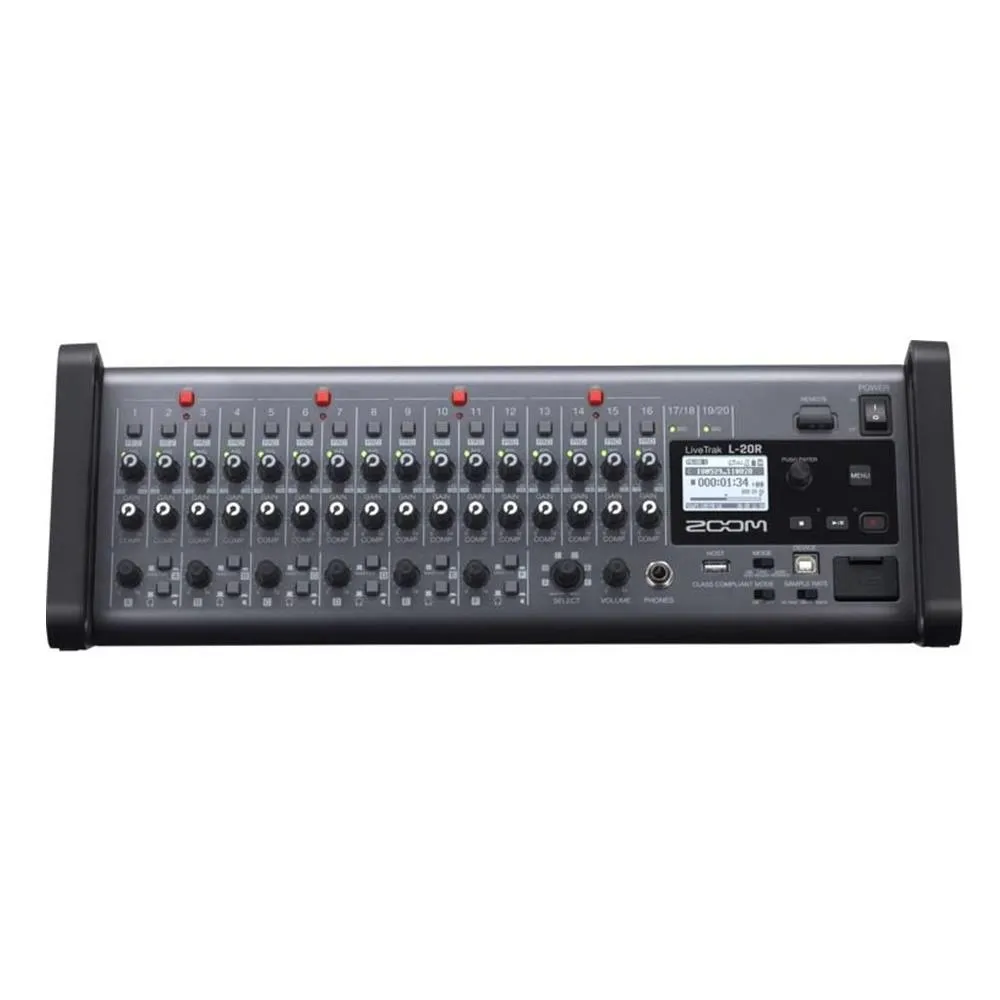

Zoom L-20R Livetrak Digital Mixer / Recorder 20-channel Rackmount Digital Mixer - Image 2

Zoom L-20R Livetrak Digital Mixer / Recorder 20-channel Rackmount Digital Mixer - Image 3

Original price was: $1,017.23.Current price is: $915.51.



FAST
Delivery



EASY
Returns



IN HOUSE
Repairs

Out of stock

Pick-up from store - FREE
Free pickup from our Melbourne Store at 4 Drake Boulevard, Altona VIC 3018. Your order will typically be ready by the next business day. We recommend calling us on (03) 8360 7799 beforehand to check it's ready for collection.

Description
Additional information

Enables you to record up to 22 individual channels directly to an SD card, supplies you with custom headphone mixes for up to six band members, and delivers a polished live mix — complete with studio-quality effects.

Features:

• 20-channel rackmount digital mixer (16 mono/2 stereo)

• 22-in/4-out USB audio interface for your Mac, PC, or iOS device (Apple Lightning-to-USB Camera Adapter is required for iOS)

• 22-track 24-bit/96kHz recording directly to an SD card

• Record up to 48kHz to a computer and an SD card simultaneously

• Create customizable, savable headphone mixes for up to 6 band members

• Complete your entire project on the mixer, or transfer all 22 discrete tracks to your DAW for editing and mixing

• 16 combo jacks accommodate both XLR and 1/4" connectors

• 16 great-sounding mic preamps with phantom power and +60dB of gain

• Channels 1–2 offer hi-Z inputs for your electric guitar or bass

• Channels 17/18 and 19/20 have TRS and RCA connectivity for keyboards and other audio devices

• Each channel features a 3-band mid-parametric EQ and 20 built-in effects

• Channels 1–16 include a dedicated compressor for controlling dynamics

• Channels 3–16 have a -26dB pad for capturing loud sources

• Clear 12-segment LED metering for keeping an eye on your levels

• Save up to 9 scenes and recall your custom settings automatically

• FOH engineer and 6 musicians can take command of their own mix via the Remote Mixer app for iPad

Tech Specifications:

• Type:Rackmount Digital Mixer

• Channels:20 (16 x mono, 2 x stereo)

• Inputs - Mic Preamps:2 x XLR-1/4" combo (mic/line/Hi-Z), 14 x XLR-1/4" combo (mic/line)

• Phantom Power:16 channels

• Inputs - Line:2 x Dual RCA Stereo (line), 4 x 1/4" (2 x stereo line)

• Outputs - Main:2 x XLR (master)

• Aux Sends:6 x 1/4" (monitor out A-F)

• Remote:1 x 1/4" (control footswitch)

• USB:1 x Type B, 1 x Type A

• Computer Connectivity:USB (22 x 4)

• Bluetooth:BTA-1 Adapter (included)

• Headphones:1 x 1/4"

• A/D Resolution:24-bit/96kHz

• EQ Bands:3-band EQ, Low Cut

• Effects:20 x Effects; Reverb, Delay, Chorus

• Signal Processing:Compression

• Transport Controls:Yes

• Storage:SDHC (max 32GB), SDXC (max 512GB)

• Software:Remote Mixer app, L-20 Control iPad app

• Rackmountable:Yes (rack ears included)

• Power Source:12V DC external power supply (included)

• Height:5.97"

• Depth:6.22"

• Width:17.24"

• Weight:5.4 lbs.

• Manufacturer Part Number:ZL20R

Note: iPad required for operation. Compatible with all iPad Air models, iPad Mini 2 and later, iPad Pro, and iPad (2017), running iOS 10.3.3 or newer. iPadOS 13 is not currently supported.
