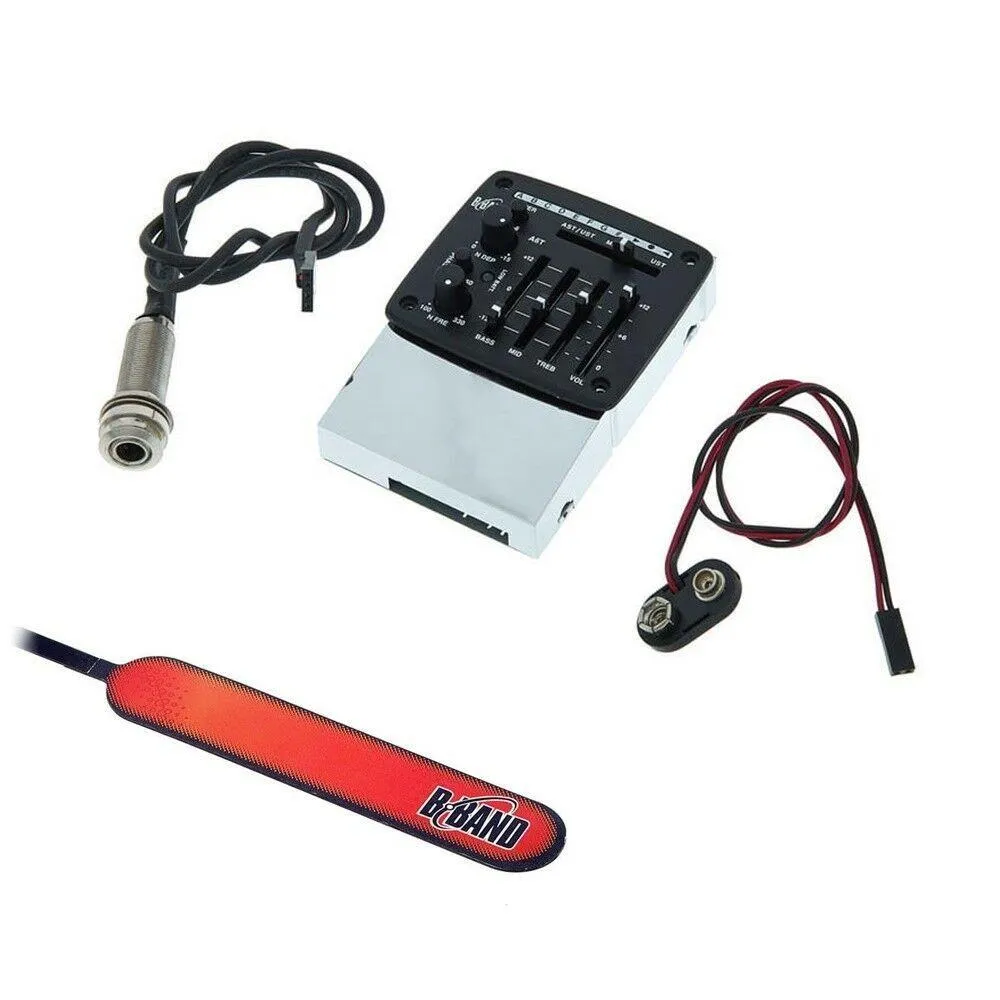

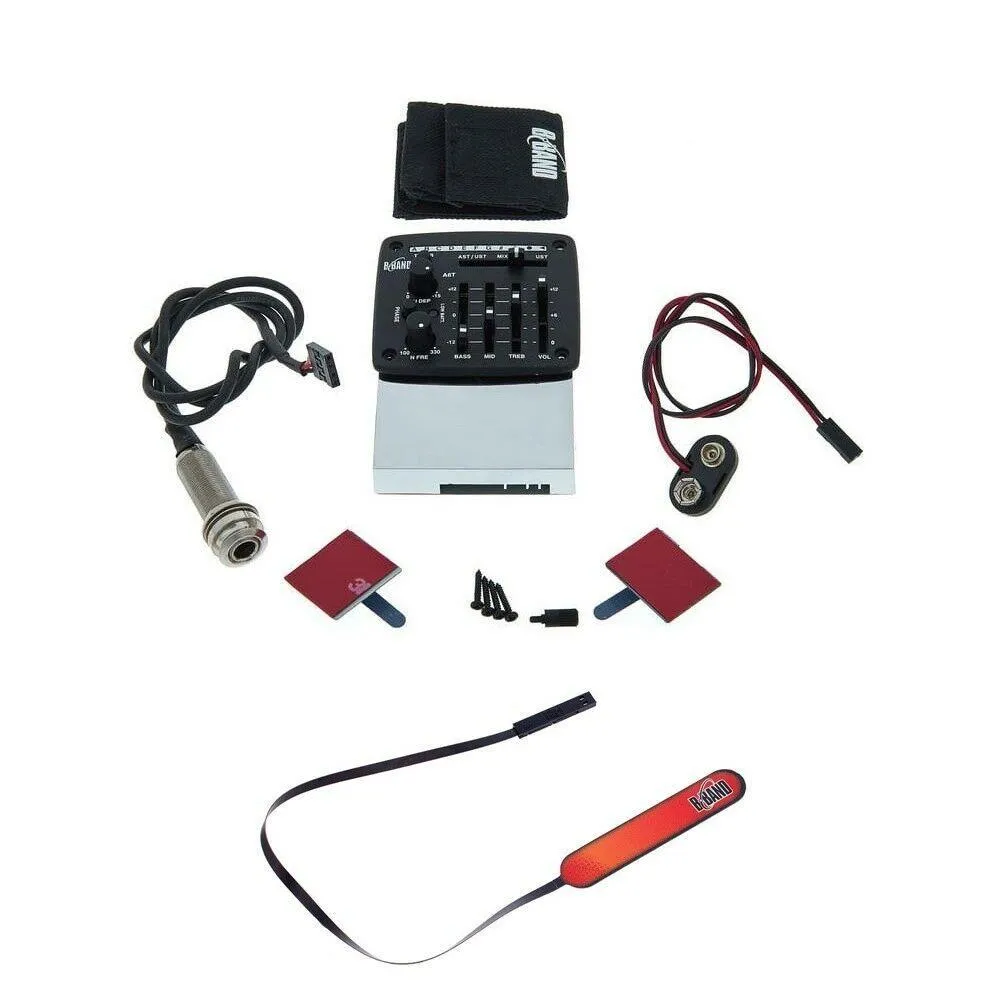

B-Band A6T-29R-1470 Acoustic Guitar Dual Pickup System with Preamp/EQ

• Dual Channel XOM Sidemount Preamp/EQ
• Includes AST 1470 Acoustic Soundboard Transducer
• Includes UST 29R Undersaddle Transducer (1/8")
• HZZless Low Noise/High Output Circuitry
• Built-in Chromatic Tuner
• 3 Band Equalizer with Phase and Notch Controls
• For Steel and Nylon String Guitars

The new B-Band A6T-29R-1470 is based on the now popular A5T preamp but has an extra bonus of second XOM input channel for the AST pickup. The A6T with the XOM mix of UST and AST pickups, and the HZZless circuit, delivers massive sound that only gets bigger live on stage or in the studio. Features include a fast and rock solid chromatic tuner that is equally at home with 12 or 6-string guitars as well as alternative tunings. Slider controls that include the XOM mix; volume and a 3-band EQ that co-exist with rotary feedback controls, push-button phase control, and battery function LED as well as Notch Depth and Frequency.

The B-Band AST-29R-1470 includes two pickups -- the UST 29R undersaddle pickup (2.9mm, 1/8") and the AST Acoustic Soundboard Transducer pickup. Each pickup has its own XOM channel on the A6T preamp, and a mix control on the preamp allows blending of both pickups.

Preamp dimensions: L 86mm (3.38”), W 57mm (2.24”), H 31mm (1.22”)Bezel: L 57mm (2.25") X W 63mm (2.63")Cutout: L 50mm (1.97") x W 55mm (2.17")
