Fishman PRO-MAN-ELA Ellipse Aura with Narrow Pickup with Preamp System

The Ellipse Aura combines Fishman’s most sophisticated onboard preamp design with the power of Aura® Acoustic Imaging Technology for exceptional accuracy and true to life sound. Ellipse Aura allows acoustic musicians to easily and accurately reproduce the sound of their instrument as miked in a professional studio.

Load up to four Aura Images into this intuitive, discreetly mounted preamp.

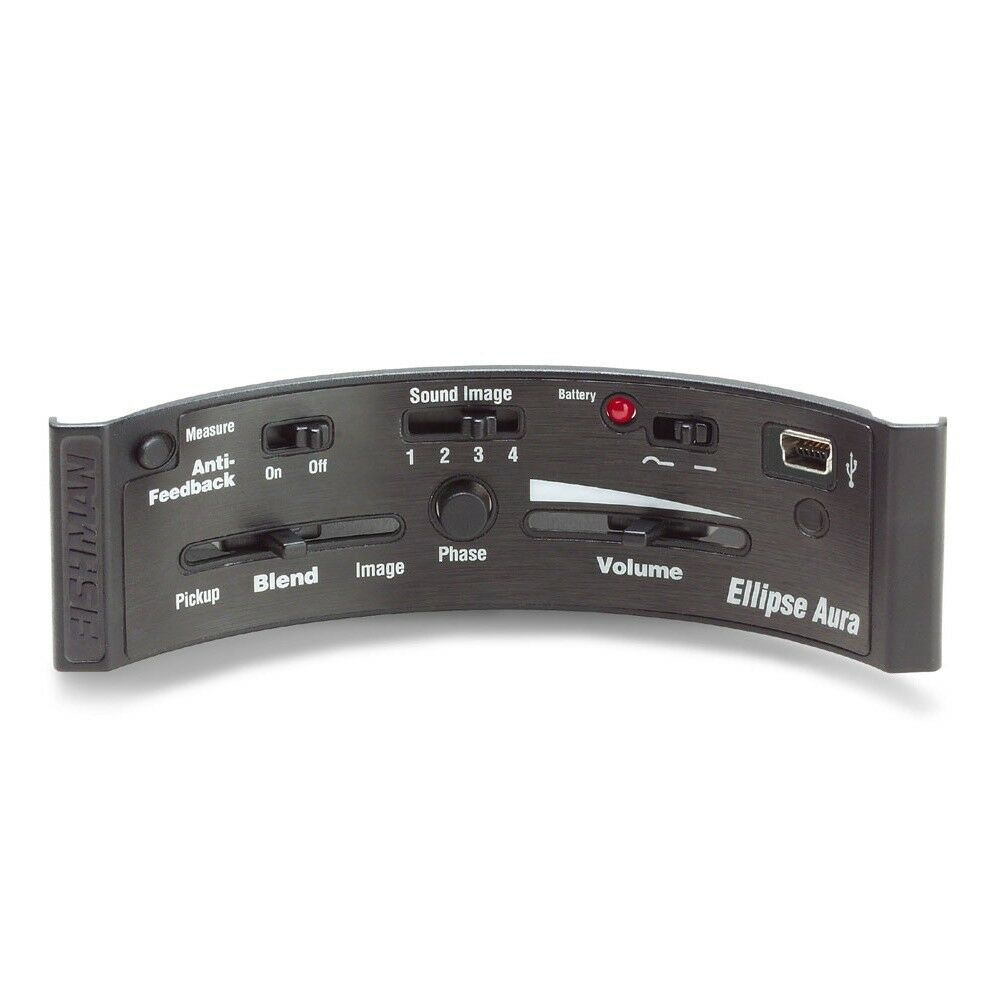

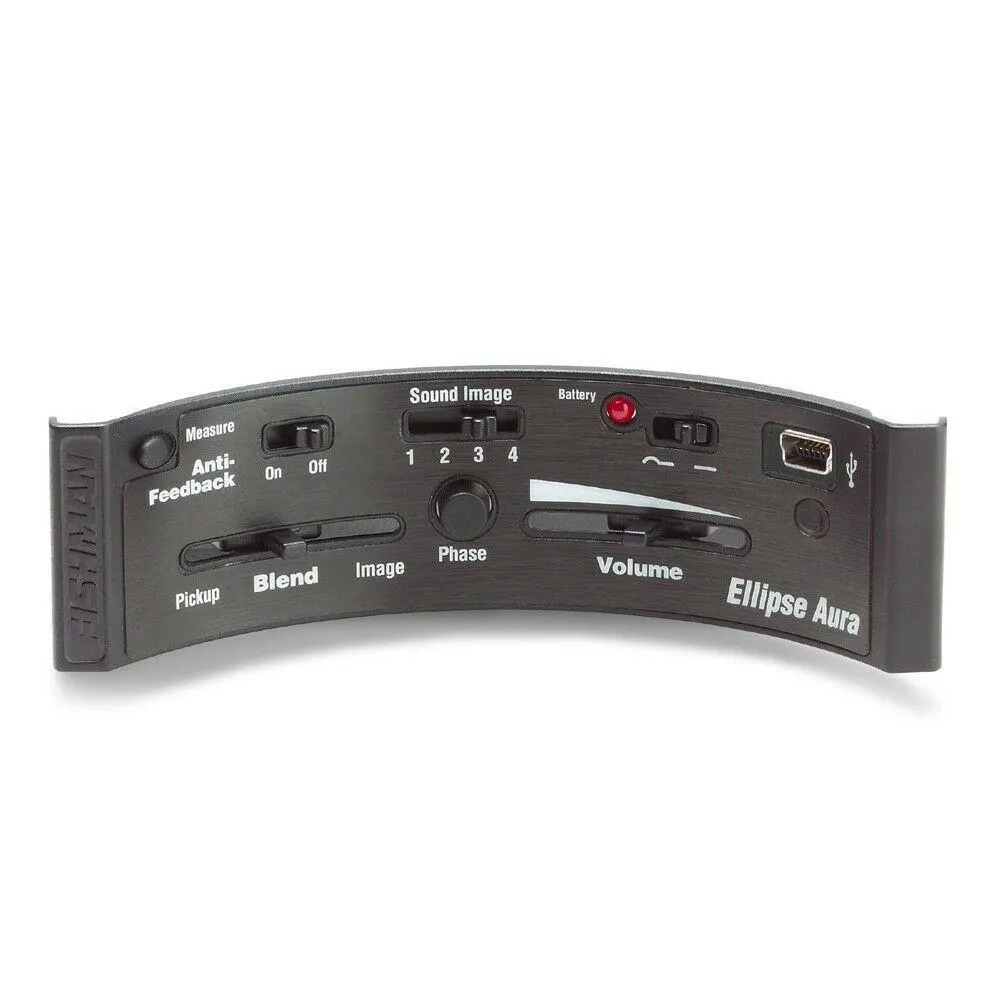

The ergonomic soundhole-mounted design puts slider controls at the player’s fingertips to maintain a natural playing position.

The Ellipse Aura features Pickup/Image Blend, Volume and switchable Natural I and Natural II low frequency tone shaping, a Phase Switch and automatic Anti-Feedback control.

Features

• State-of-the-art onboard preamp featuring Fishman’s Aura Acoustic Imaging Technology

• Up to four Aura Images can be downloaded from Fishman’s Aura Image Gallery software (included)

• Ergonomic soundhole-mounted design puts slider controls at your fingertips to maintain a natural playing position

• Features the world’s best selling undersaddle pickup, the Acoustic Matrix

• Automatic anti-feedback

• Pickup/Image Blend control

• Volume control

• Phase switch (feedback control)

• Low battery indicator

• Unique patent-pending neodymium magnetic mounting system for easy, solder-free installation

• Solder-free connections

• Switchable low frequency tone-shaping built into preamp

• Pickup available in wide, narrow or split formats

• Professional installation recommended

Specifications

• Narrow format: 3/32" (2.3mm) width

• Pickup length: Standard pickup length of 2.65" (67.3mm) will fit most guitars with 2.5" (63.5mm) string spaces

• Soundhole: Accomodates most round soundholes from 3-7/8" (98mm) to 4-1/8" (105mm) in diameter

• Battery: 9-Volt

• Battery Life: 33 hours
