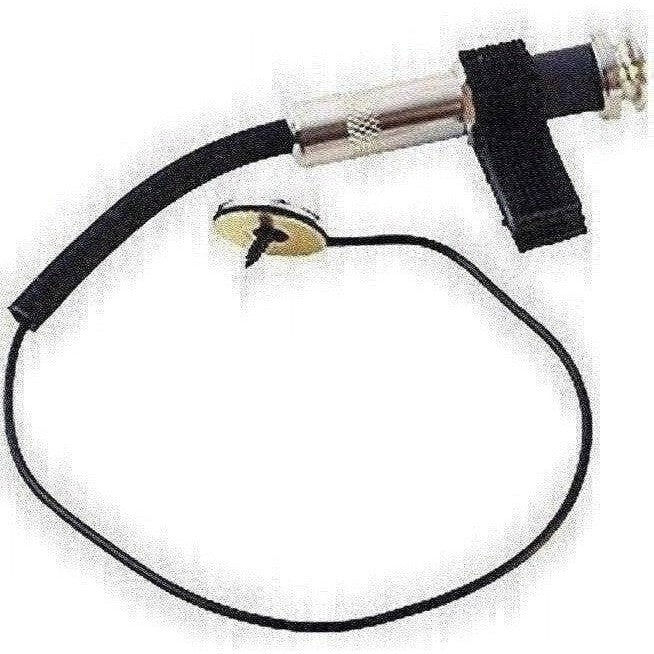

K&K Sound Pure Resonator BB — Biscuit Bridge Passive Pickup

The K&K Sound Pure Resonator BB is a passive pickup designed specifically for biscuit bridge resonator guitars — the single-cone National, Regal, Recording King and similar style instruments. Featuring a screw-mounted design for maximum sound transmission and feedback resistance, pre-wired for external jack mounting with a 3M Dual-Lock fastening system, and updated in December 2017 for improved string-to-string balance. This is the definitive amplification solution for biscuit bridge resonator players who want natural, acoustic tone without active electronics.

Biscuit Bridge vs Spider Bridge — The Critical Compatibility Question

Before purchasing a resonator pickup, it is essential to know which bridge type your guitar uses. The two resonator bridge designs are fundamentally different and require different pickup solutions.

Screw-Mounted Design — Maximum Sound Transmission

The Pure Resonator BB uses a screw-mounted pickup design — the pickup element is secured directly to the biscuit saddle with a small screw, creating a direct mechanical connection between the pickup and the vibrating saddle. This direct coupling is the key to the Pure Resonator BB's natural, acoustic sound quality.

Many resonator pickup designs use adhesive or pressure contact with the cone or body — less invasive but also less acoustically coupled. The screw-mounted approach of the Pure Resonator BB captures the vibration of the saddle directly, reproducing the characteristic resonator tone — the metallic shimmer, the cone sustain and the complex harmonic content — more accurately than contact-mounted alternatives.

The screw mounting also contributes to the Pure Resonator BB's excellent feedback resistance — because the pickup is capturing saddle vibration rather than body vibration, it is significantly less prone to the feedback that plagues many resonator amplification solutions at stage volume.

Pre-Wired for External Jack — Dual-Lock Fastening System

The Pure Resonator BB arrives pre-wired and ready to install. The output jack is configured for external mounting using the 3M Dual-Lock fastening system — an industrial-strength hook-and-loop fastener that secures the jack to the outside of the guitar body without drilling or permanent modification. The Dual-Lock system is strong enough for stage use and removes cleanly without damaging the guitar's finish.

For players who prefer an internally mounted jack — a cleaner, more permanent installation — the Dual-Lock system can be removed and the jack installed inside the endpin or side of the guitar. Professional installation is required for internal jack mounting. Our workshop team at Angkor Music can perform this installation.

Passive — No Battery Required

The Pure Resonator BB is a passive pickup — it requires no battery and contains no onboard preamp. The passive design produces a natural, uncoloured signal that accurately reflects the acoustic character of the instrument without the compression, EQ colouring or tonal alteration that active onboard systems can introduce.

The passive output of the Pure Resonator BB is optimised for connection to:

• An acoustic amplifier with a high-impedance instrument input
• A DI box (passive or active) for connecting to a PA system or mixing desk
• A K&K Pure Preamp or similar acoustic preamp for volume control and EQ

For players who want volume control and basic EQ at the guitar, we recommend adding the K&K Pure Preamp — available separately at Angkor Music — which is specifically designed to complement K&K passive pickup systems.

2017 Update — Improved String-to-String Balance

The Pure Resonator BB was updated in December 2017 specifically to improve string-to-string balance — ensuring that all six strings are reproduced with consistent volume and tonal character rather than having some strings sound louder or brighter than others through the pickup. This refinement reflects K&K's ongoing commitment to optimising their pickup designs based on real-world player feedback.

K&K Sound at Angkor Music

Angkor Music stocks the complete K&K Sound pickup and preamp range. Whether you need a pickup for an acoustic guitar, resonator, classical guitar, mandolin or banjo — or a preamp solution to match — we have the correct K&K product. Our team is happy to discuss the right solution for your specific instrument and playing application.

Specifications

Expert Advice at Angkor Music

At Angkor Music Melbourne we stock the complete K&K Sound range — pickups for every acoustic instrument type and preamp solutions for every application. If you have questions about which K&K pickup suits your resonator, whether you need a preamp, or how to get the best sound from your resonator live or in the studio, our team is happy to advise.

★★★★★
