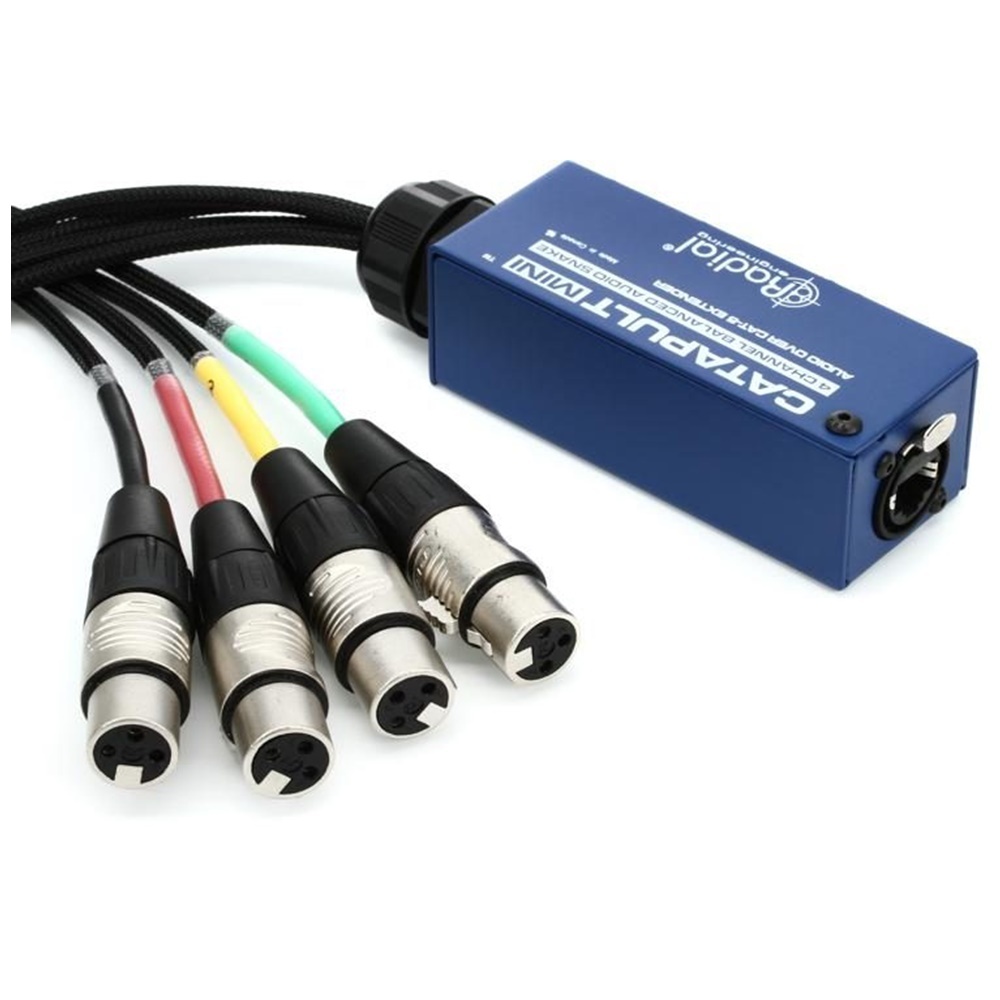

Radial Catapult MINI TX Cat 5 Audio Snake

Transmit 4 Channels of Analog Audio Via Cat 5

The Radial Catapult MINI TX is an ingenious invention. It, when combined with the Catapult MINI RX, enables you to transform a standard Cat 5 cable into a 4-channel analog snake. Simply connect a shielded Cat 5 cable between the two modules, and they’ll use the analog conductors in the cable to deliver four balanced audio lines to whatever destination you choose. The MINI TX employs straight-wire passive operation — it’s analog all the way, with no digital conversion necessary. We’ve also used the MINI TX to transmit audio via a building’s pre-existing Ethernet network. You can put a performer, mic, and preamp in one room, and send the signal to your DAW in a completely different room. Sending audio between two distant locations has never been easier!

Radial Catapult MINI TX Features:

• Transforms a standard Cat 5 cable into a 4-channel analog snake (when used in conjunction with a Catapult MINI RX — sold separately)
• Uses the analog conductors in any shielded Cat 5 cable to deliver 4 balanced audio lines
• Employs straight-wire passive operation — it’s analog all the way, with no digital conversion
• Can also work via a building’s pre-existing Ethernet network

Tech Specs

• Type:Cat 5 Analog Snake
• Channels:4
• Inputs:4 x XLR Female
• Outputs:1 x Ethernet (shielded Cat 5)
• Manufacturer Part Number:R800 8028 00
